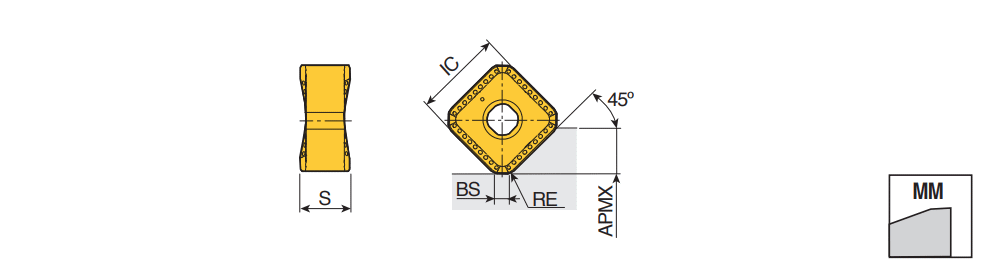

SNHX 1606 ANN-MM : Heavy duty double-sided ground square inserts with 8 cutting edges for cast irons milling in 45° face mills

Designation	IC	S	APMX	BS	RE	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	l	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNHX 1606 ANN-MM	16.70	6.40	8.80	2.40	0.80	16.00~	8~	C2Q-SN16W ~	2.64	7.04	0.200	0.100	M8 ~	S ~	0.00~	71DD68D829217 ~	G50 ~	MM ~	TT6080~	IS$$289669506135372 ~	SNHX 16 ~	0~	5613663		2		TT7080 TT6080
