TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

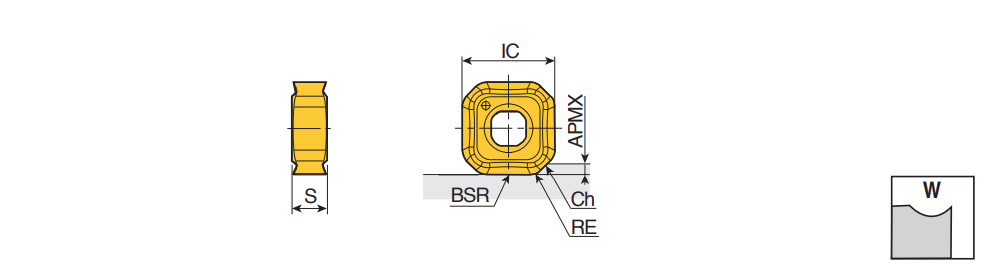

SNET 12-W : Precision ground wiper inserts of single-side with chamfers & 4 cutting edges of SNET 12 for steel finishing showing excellent chip evacuations

Designation	IC	S	RE	APMX	BSR	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNET 1205-W	12.70	5.56	2.00	1.00	450.00	12.00~	0.30	0.80	0.150	0.070	M6 ~	8~	C2Q-SN12 ~	S ~	71DD68D829217 ~	U30 ~	W ~	TT6080~	IS$$392518524851705 ~	SNET 12 ~	0~	5613650		2		TT9080 TT6080
