Turning
Main Application

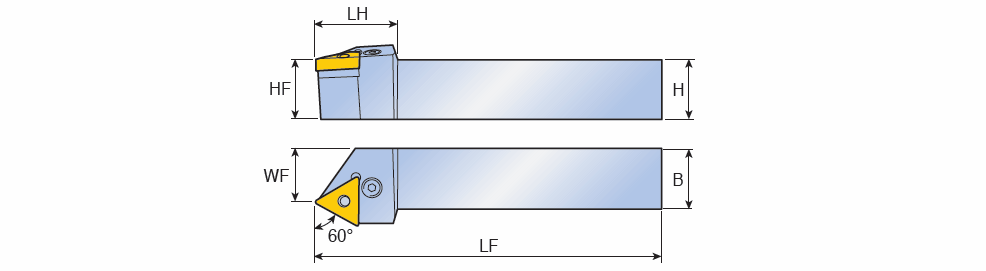

PTTNR/L : Lever type holders with 60° approach angle for negative Triangular inserts
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 GICATGIREMgiicGICODE
  PTTNR 1616 H16 16.016.016.0100.0024.013.009.52~4.76~0~60.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3600174 0
  PTTNR 2020 K16 20.020.020.0125.0024.017.009.52~4.76~0~60.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3600176 0
  PTTNL 2525 M16 25.025.025.0150.0024.025.009.52~4.76~0~60.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 160408 IS$$499577722031119 ~IS$$499578017563422 ~IS$$979311444151597 ~3600525 0
  PTTNL 2525 M22 25.025.025.0150.0034.022.0012.70~4.76~0~60.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~TNGA 220408 IS$$237096026163220 ~IS$$415516365937120 ~ ~3600526 0
  PTTNR 2525 M16 25.025.025.0150.0024.025.009.52~4.76~0~60.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 160408 IS$$505657970253056 ~IS$$505658269163133 ~IS$$979311444151597 ~3600527 0
  PTTNR 2525 M22 25.025.025.0150.0034.022.0012.70~4.76~0~60.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~TNGA 220408 IS$$217318716558844 ~IS$$227184725698585 ~IS$$415516365937120 ~3600528 0
