TaeguTec Cutting Tools - Metal Working Tools - Turning -

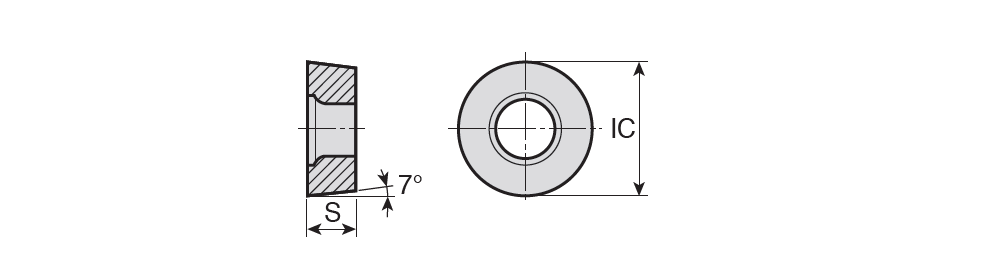

RCGT-FL : Positive periphery ground & top polished Round inserts with very high positive rake & sharp cutting edges for aluminum machining

Designation	IC	S	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
RCGT 0803MO FL	8.00	3.18	FL ~	0~	7.00~	1.00	4.00	0.20	0.40	0~	P ~	~	R ~	71D1AA6635E76 ~	Uncoated ~	K10 ~	3~	ISO$RC0803MO3NB$$MO ~	0803MO ~	RCGT ~	Y ~	8 ~	5513107	1	K10
RCGT 1003MO FL	10.00	3.18	FL ~	0~	7.00~	1.00	5.00	0.20	0.40	0~	P ~	~	R ~	71D1AA6635E76 ~	Uncoated ~	K10 ~	3~	ISO$RC1003MO3NB$$MO ~	1003MO ~	RCGT ~	Y ~	10 ~	5513118	1	K10
RCGT 10T3MO FL	10.00	3.97	FL ~	0~	7.00~	1.00	5.00	0.20	0.40	0~	P ~	~	R ~	71D1AA6635E76 ~	Uncoated ~	K10 ~	3~	ISO$RC10T3MO3NB$$MO ~	10T3MO ~	RCGT ~	Y ~	10 ~	5514051	1	K10
