TaeguTec Cutting Tools - Metal Working Tools - Turning -

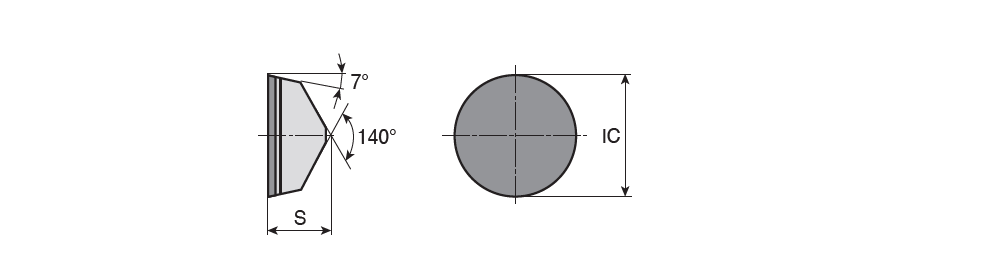

RCGX-FT (CBN) : Positive round type full top CBN inserts for cast iron machining

Designation	IC	S	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
RCGX 090300 FT	9.52	3.18	0~	7.00~	0.10	1.50	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	CBN ~	TB7015~	3~	ISO$RC0903003NA$$00 ~	32 FT ~	RCGX ~	Y ~	~	6210530		1		TB7015
RCGX 120400 FT	12.70	4.76	0~	7.00~	0.10	1.50	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	CBN ~	TB7015~	3~	ISO$RC1204003NA$$00 ~	43 FT ~	RCGX ~	Y ~	~	6210531		1		TB7015

FT: Full top CBN 0.13 X 20° with Honing
