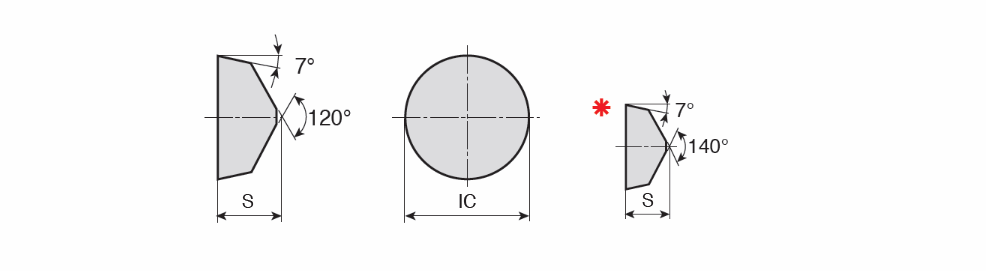

RCGX-CERAMIC : Positive Round ground Ceramic inserts with 7° clearance angle with V shape bottom for nickel based super alloys & hardened steels machining

* Marked for 'RCGX 251200 U3'
This is the only item with a 140° bottom

Designation	IC	S	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RCGX 060400 T6	6.35	4.76	0~	7.00~	0.10	2.00	0.05	0.25	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC0604003NA$$00 ~	23 T6 ~	RCGX ~	Y ~	~	6189069	1	TC3020
RCGX 060600 T6	6.35	6.35	0~	7.00~	0.10	2.00	0.05	0.25	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC430 ~	3~	ISO$RC0606003NA$$00 ~	24 T6 ~	RCGX ~	Y ~	6 ~	5703854	1	TC430
RCGX 060600 U1	6.35	6.35	0~	7.00~	0.10	2.00	0.05	0.25	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	3~	ISO$RC0606003NA$$00 ~	24 U1 ~	RCGX ~	Y ~	6 ~	5701750	1	AB30
RCGX 090700 E	9.52	7.94	0~	7.00~	0.10	3.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC0907003NA$$00 ~	35 E ~	RCGX ~	Y ~	9 ~	6182034	2	TC3030 TC3020
RCGX 090700 E04	9.52	7.94	0~	7.00~	0.10	3.00	0.05	0.30	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC0907003NA$$00 ~	35 E04 ~	RCGX ~	Y ~	9 ~	6302595	2	TC3030 TC3020
RCGX 090700 T2	9.52	7.94	0~	7.00~	0.10	3.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	3~	ISO$RC0907003NA$$00 ~	35 T2 ~	RCGX ~	Y ~	9 ~	5700432	1	AB30
RCGX 090700 T6	9.52	7.94	0~	7.00~	0.10	3.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC0907003NA$$00 ~	35 T6 ~	RCGX ~	Y ~	9 ~	6151102	3	TC3030 TC3020 TC430
RCGX 090700 U1	9.52	7.94	0~	7.00~	0.10	3.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	3~	ISO$RC0907003NA$$00 ~	35 U1 ~	RCGX ~	Y ~	9 ~	5700434	2	AB30 AB20
RCGX 120700	12.70	7.94	0~	7.00~	0.10	4.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	3~	ISO$RC1207003NA$$00 ~	45 ~	RCGX ~	Y ~	12 ~	6342625	1	AB30
RCGX 120700 E	12.70	7.94	0~	7.00~	0.10	4.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC1207003NA$$00 ~	5E ~	RCGX ~	Y ~	12 ~	6182039	2	TC3030 TC3020
RCGX 120700 E04	12.70	7.94	0~	7.00~	0.10	4.00	0.05	0.35	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC1207003NA$$00 ~	45 E04 ~	RCGX ~	Y ~	~	6302597	2	TC3030 TC3020
RCGX 120700 T6	12.70	7.94	0~	7.00~	0.10	4.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	3~	ISO$RC1207003NA$$00 ~	45 T6 ~	RCGX ~	Y ~	12 ~	6182037	3	TC3030 TC3020 TC430
RCGX 120700 U2	12.70	7.94	0~	7.00~	0.10	4.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	3~	ISO$RC1207003NA$$00 ~	45 U2 ~	RCGX ~	Y ~	12 ~	5700439	2	AB30 AB20
RCGX 151000 U2	15.88	10.00	0~	7.00~	0.10	5.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	3~	ISO$RC1510003NA$$00 ~	57 U2 ~	RCGX ~	Y ~	15 ~	5700443	2	AB30 AB20
RCGX 191000 U2	19.05	10.00	0~	7.00~	0.10	5.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	3~	ISO$RC1910003NA$$00 ~	67 U2 ~	RCGX ~	Y ~	19 ~	5700446	2	AB30 AB20
RCGX 251200 U3	25.40	12.00	0~	7.00~	0.10	5.00	0.05	0.35	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	3~	ISO$RC2512003NA$$00 ~	251200 ~	RCGX ~	Y ~	25 ~	6185129	1	AB30

E : Honing without T-land
T2: Land 0.10 x 30°
T6: Land 0.10 x 20°
U1: 1st Land 0.7 x 15° & 2nd Land 0.15 x 30°
U2: 1st Land 1.5 x 15° & 2nd Land 0.15-0.2 x 30°
U3: 1st Land 2.0 x 15° & 2nd Land 0.20 x 30°
