RNGN-CERAMIC : Negative Round ground Ceramic insert without hole for cast iron & hardened steel machining

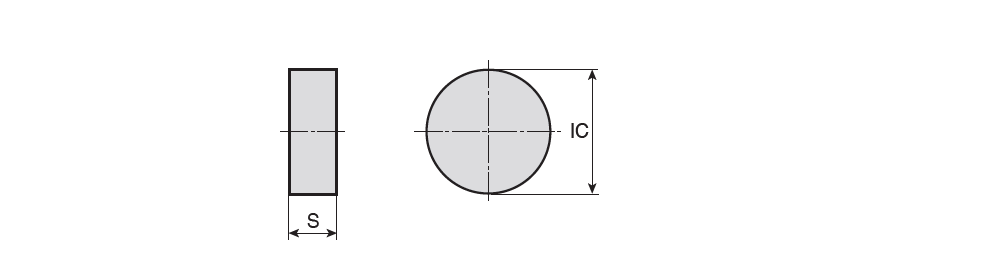

Designation	IC	S	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RNGN 090300	9.52	3.18	0~	0.00~	0.10	2.50	0.05	0.15	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	1~	ISO$RN0903MO1NA$$MO ~	2 ~	RNG ~	Y ~	9 ~	5700473	2	AB30 AB20
RNGN 090300 T6	9.52	3.18	0~	0.00~	0.10	2.50	0.05	0.15	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC430 ~	1~	ISO$RN0903MO1NA$$MO ~	32 T6 ~	RNGN ~	Y ~	9 ~	5703528	1	TC430
RNGN 090400 T6	9.52	4.76	0~	0.00~	0.10	2.50	0.05	0.15	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC430 ~	1~	ISO$RN0904MO1NA$$MO ~	3 T6 ~	RNG ~	Y ~	9 ~	5703530	1	TC430
RNGN 120400	12.70	4.76	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	1~	ISO$RN1204MO1NA$$MO ~	3 ~	RNG ~	Y ~	12 ~	5702690	3	AB30 AB20 AB2010
RNGN 120400 E	12.70	4.76	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3030~	1~	ISO$RN1204MO1NA$$MO ~	120400 ~	RNG ~	Y ~	12 ~	6306638	2	TC3030 TC430
RNGN 120400 T6	12.70	4.76	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC430 ~	1~	ISO$RN1204MO1NA$$MO ~	3 T6 ~	RNG ~	Y ~	12 ~	5703421	1	TC430
RNGN 120700	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	1~	ISO$RN1207MO1NA$$MO ~	5 ~	RNG ~	Y ~	12 ~	5702691	3	AB30 AB20 AB2010
RNGN 120700 E	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1207MO1NA$$MO ~	45 E ~	RNG ~	Y ~	12 ~	6182042	2	TC3030 TC3020
RNGN 120700 E04	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1207MO1NA$$MO ~	45 E04 ~	RNGN ~	Y ~	12 ~	6170118	1	TC3020
RNGN 120700 S6	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1207MO1NA$$MO ~	45 S6 ~	RNG ~	Y ~	12 ~	6310641	2	TC3030 TC3020
RNGN 120700 T6	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1207MO1NA$$MO ~	5 T6 ~	RNG ~	Y ~	12 ~	6158924	3	TC3030 TC3020 TC430
RNGN 120700 W2	12.70	7.94	0~	0.00~	0.10	4.00	0.05	0.20	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	1~	ISO$RN1207MO1NA$$MO ~	5 W2 ~	RNG ~	Y ~	12 ~	5700128	1	AB20
RNGN 150700	15.88	7.94	0~	0.00~	0.10	4.50	0.05	0.25	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	1~	ISO$RN1507MO1NA$$MO ~	5 ~	RNG ~	Y ~	15 ~	6301099	1	AB30
RNGN 150700 T6	15.88	7.94	0~	0.00~	0.10	4.50	0.05	0.25	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC430 ~	1~	ISO$RN1507MO1NA$$MO ~	5 T6 ~	RNG ~	Y ~	15 ~	5703538	1	TC430
RNGN 190700	19.05	7.94	0~	0.00~	0.10	5.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB20 ~	1~	ISO$RN1907MO1NA$$MO ~	5 ~	RNG ~	Y ~	19 ~	5701456	2	AB30 AB20
RNGN 190700 E04	19.05	7.94	0~	0.00~	0.10	5.00	0.05	0.30	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1907MO1NA$$MO ~	5 E04 ~	RNG ~	Y ~	19 ~	6186123	2	TC3030 TC3020
RNGN 190700 T6	19.05	7.94	0~	0.00~	0.10	5.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN1907MO1NA$$MO ~	5 T6 ~	RNG ~	Y ~	19 ~	6186698	3	TC3030 TC3020 TC430
RNGN 190700 U2	19.05	7.94	0~	0.00~	0.10	5.00	0.05	0.30	0~	P ~	~	R ~	71D1AA6635E76 ~	Ceramic ~	AB30 ~	1~	ISO$RN1907MO1NA$$MO ~	5 U2 ~	RNG ~	Y ~	19 ~	5701422	1	AB30
RNGN 250900 E04	25.40	9.52	0~	0.00~	0.10	5.00	0.05	0.35	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN2509MO1NA$$MO ~	6 E04 ~	RNG ~	Y ~	~	6186125	2	TC3030 TC3020
RNGN 250900 T6	25.40	9.52	0~	0.00~	0.10	5.00	0.05	0.35	0~	~	~	R ~	71D1AA6635E76 ~	Ceramic ~	TC3020~	1~	ISO$RN2509MO1NA$$MO ~	6 T6 ~	RNG ~	Y ~	25 ~	6186700	2	TC3030 TC3020

No Notation: 0.2 X 25° without Honing
T6: Land 0.10 X 20° without Honing
S6: Land 0.10 X 20° with Honing
E: Honing 0.02 ° 0.03 , E04: Honing 0.04 ° 0.05 without Land
U2: Double Land 1.5 X 15°, 0.15 X 30° without Honing
W2: Double Land 1.5 X 15°, 0.15 X 30° without Honing
