XNHU 09 ANTN-CE : Ground double-sided Ceramic inserts of economical 14 cutting edges for high speed cast iron milling

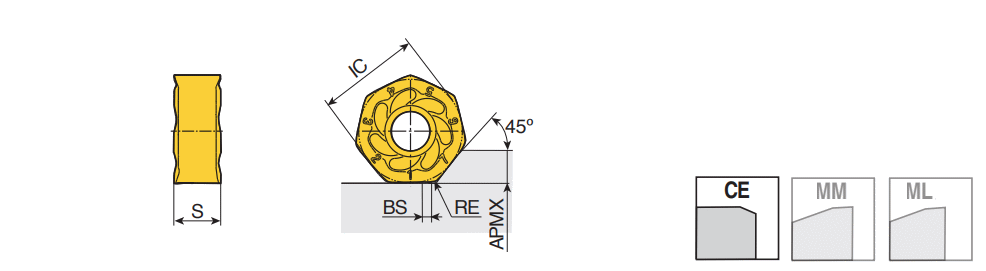

Designation	IC	S	BS	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	GRDMFG	IIC	Pocket	W.link	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
XNHU 0906 ANTN-CE	18.50	6.35	1.00	1.00	5.00	9.00~	14~	C2H-XN09W ~	1.30	4.00	0.300	0.140	M10 ~	X ~	71DDA089C8D1E ~	C50 ~	AS10 ~	IS$$503698204801033 ~	XNHU 09 ~	40~	0~	5703672		1		AS10
