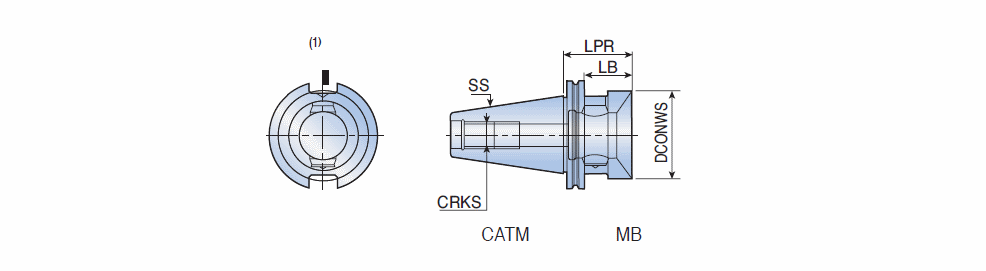

CATM-MB : MB modular connection system with ANSI B5.50 Caterpillar taper shank and metric pull stud thread.


  DesignationSS DCONWS LPR LB CRKS LTA GICATGIREMgiicGICODE
  CATM 40 MB50 40 50.0066.0047.0M16 1.850.00~4652349 0
  CATM 40 MB63 40 63.00100.00-M16 1.910.00~4652379 0
  CATM 50 MB50 50 50.0048.0029.0M24 3.060.00~4652363 0
  CATM 50 MB80 50 80.0062.0043.0M24 3.350.00~4652414 0
(1)Cutting edge position.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
