Boring System
Main Application

Related Holder Related Holder
Workpiece Side

ST-MB : MB modular connection system with straight cylindrical shanks.

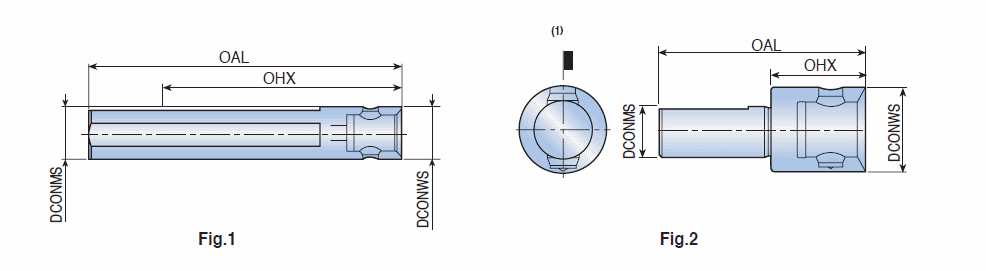

Designation	d	DCONMS	DCONWS	OAL	OHX		Fig	GICAT
ST 16-MB16	16.00~	16	16.00	100.00	66.0	0.20	1	4652669
ST 20-MB20	20.00~	20	20.00	125.00	85.0	0.30	1	4652673
ST 32-MB50	32.00~	32	50.00	140.00	60.0	1.00	2	4652365

(1)Cutting edge position.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
