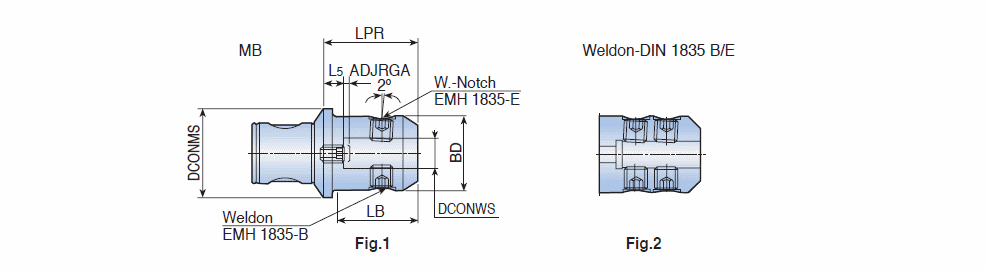

EMH MB : Weldon side-lock holder with MB modular boring system connection.

Designation	S1	DCONMS	DCONWS	BD	LPR	LB	L5	ADJRGA	Fig		Style 1	LTA	GICAT
EMH MB50-6	6.00~	MB50	6.00	25.00	44.00	32.0	7.00	2.0	1	0.51	W ~	44.00~	4652582
EMH MB50-8	8.00~	MB50	8.00	28.00	44.00	33.0	7.00	2.0	1	0.54	W ~	0.00~	4652583
EMH MB50-10	10.00~	MB50	10.00	35.00	52.00	42.0	11.00	3.0	1	0.68	W ~	0.00~	4652584
EMH MB50-12	12.00~	MB50	12.00	42.00	57.00	48.0	11.00	3.0	1	0.86	W ~	0.00~	4652585
EMH MB50-14	14.00~	MB50	14.00	42.00	57.00	48.0	11.00	3.0	1	0.84	W ~	0.00~	4652586
EMH MB50-16	16.00~	MB50	16.00	48.00	67.00	61.0	17.00	4.0	1	1.12	W ~	0.00~	4652587
EMH MB50-20	16.00~	MB50	20.00	51.00	67.00	-	16.00	4.0	1	1.19	W ~	0.00~	4652588
EMH MB50-25	16.00~	MB50	25.00	63.00	80.00	-	22.00	4.0	1	1.82	W ~	0.00~	4652589
EMH MB63-16	16.00~	MB63	16.00	48.00	64.00	53.0	14.00	4.0	1	1.45	W ~	0.00~	4652590
EMH MB63-20	20.00~	MB63	20.00	52.00	66.00	56.0	14.00	4.0	1	1.56	W ~	0.00~	4652591
EMH MB63-25	25.00~	MB63	25.00	64.00	74.00	-	16.00	4.0	2	2.11	W ~	0.00~	4652592
EMH MB63-32	32.00~	MB63	32.00	72.00	76.00	-	14.00	4.0	2	2.50	W ~	0.00~	4652593
EMH MB80-40	40.00~	MB80	40.00	80.00	83.00	-	12.00	4.0	2	3.25	W ~	0.00~	4652594

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
