TaeguTec Cutting Tools - Metal Working Tools - Boring System -

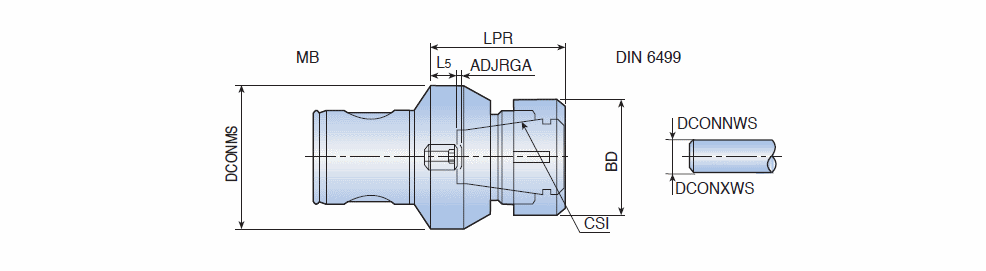

CC MB-ER : DIN 6499 ER collet chucks with MB modular boring system connection

Designation	DCONMS	CSI	DCONNWS	DCONXWS	BD	LPR	ADJRGA		LTA	GICAT
CC MB16 ER11M	MB16	ER11	0.50	7.00	16.00	25.00	2.50	0.03	18.90~	4652573
CC MB20-ER16M	MB20	ER16	0.50	10.00	22.00	32.00	1.00	0.06	0.00~	4652574
CC MB32 ER25M	MB32	ER25	1.00	16.00	35.00	42.00	1.50	0.25	0.00~	4652576
CC MB40 ER25	MB40	ER25	1.00	16.00	42.00	45.00	5.00	0.25	0.00~	4652577
CC MB50-ER25	MB50	ER25	1.00	16.00	42.00	48.00	7.00	0.70	0.00~	4652578
CC MB50-ER32	MB50	ER32	2.00	20.00	50.00	59.00	7.00	1.00	0.00~	4652579
CC MB63-ER32	MB63	ER32	2.00	20.00	50.00	59.00	12.00	1.30	0.00~	4652580

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
