TaeguTec Cutting Tools - Metal Working Tools - Boring System -

IHAXF : Brazed and indexable boring bars used on the modular MB boring system for 2.5 to 30 mm diameters.

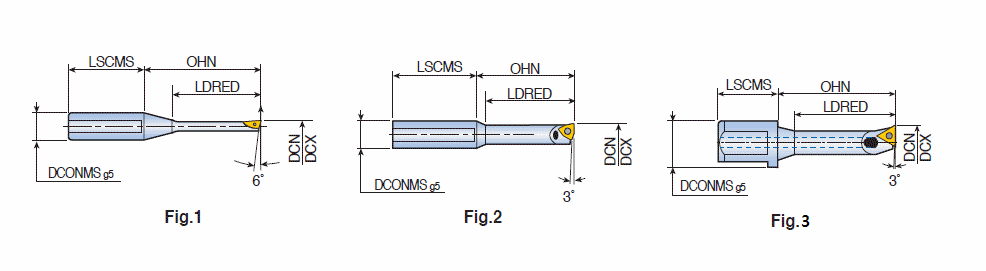

Designation	S1	DCN	DCX	LDRED	OHN	LSCMS	DCONMS	Fig	IC	IIC	GICAT	GIREM
IHAXF 2.5-4/8	1.00~	2.50	4.00	12.5	21.00	22.00	8.00	1	-~	~	4652528	Brazed tool
IHAXF 4-6/8	1.00~	4.00	6.00	20.0	24.00	24.00	8.00	1	-~	~	4652529	Brazed tool
IHAXF 6- 8/16	6.00~	6.00	8.00	21.0	29.00	22.00	16.00	2	3.97~	~	4652531
IHAXF 8-10/16	8.00~	8.00	10.00	28.0	36.00	22.00	16.00	2	3.97~	~	4652535
IHAXF 10-12/16	10.00~	10.00	12.00	35.0	43.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652539
IHAXF 11-13/16	11.00~	11.00	13.00	40.0	48.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652542
IHAXF 12-14/16	12.00~	12.00	14.00	42.0	48.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652543
IHAXF 14-16/16	14.00~	14.00	16.00	50.0	52.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652546
IHAXF 16-18/16	16.00~	16.00	18.00	50.0	58.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652549
IHAXF 18-22/16	18.00~	18.00	22.00	60.0	63.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652552
IHAXF 22-30/16	22.00~	22.00	30.00	60.0	63.00	22.00	16.00	2	5.56~	IS$$323861229384538 ~	4652553
