TaeguTec Cutting Tools - Metal Working Tools - Boring System -

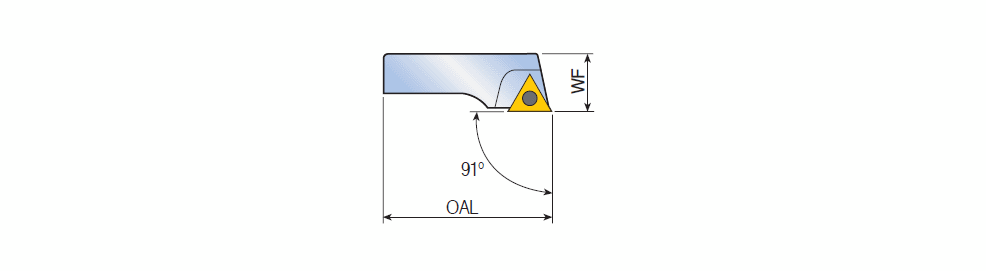

IHFF : Triangular insert holders used for mounting on the MB fine boring heads.

Designation	DCN	DCX	WF	OAL	IC	S1	CSI	IH	IIC	IIC_2	GICAT
IHFF 25	28.00	40.00	10.00	26.50	5.56~	0.00~	30 ~	25 ~	IS$$323861229384538 ~	~	4652470
IHFF 32	35.00	53.00	11.50	34.50	5.56~	0.00~	30 ~	32 ~	IS$$323861229384538 ~	~	4652479
IHFF 40	48.00	66.00	14.00	44.00	6.35~	0.00~	40 ~	40 ~	IS$$121254501809210 ~	IS$$85560024069226 ~	4652491
IHFF 50	54.00	86.00	19.00	52.00	6.35~	0.00~	40 ~	50 ~	IS$$121254501809210 ~	IS$$85560024069226 ~	4652503
