TaeguTec Cutting Tools - Metal Working Tools - Boring System -

RE MB-AVI : MB modular system vibration damping reducers.

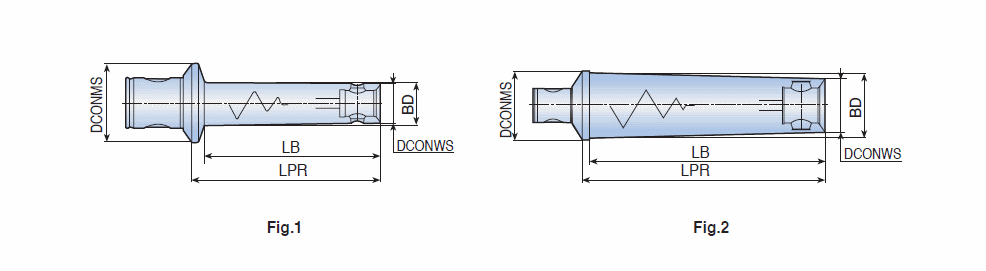

Designation	DCONMS	DCONWS	BD	LPR	LB		Fig	GICAT
RE MB50-MB16X74-AVI	MB50	MB16	17.50	74.00	65.0	0.52	1	4652646
RE MB50-MB20X93-AVI	MB50	MB20	21.50	93.00	85.0	0.65	1	4652650
RE MB50-MB25X117-AVI	MB50	MB25	27.00	117.00	110.0	0.94	1	4652654
RE MB50-MB32X144-AVI	MB50	MB32	35.00	144.00	138.0	1.47	1	4652658
RE MB50-MB40X176-AVI	MB50	MB40	47.00	176.00	170.0	2.73	1	4652662
RE MB63-MB50X220-AVI	MB63	MB50	60.00	220.00	214.0	5.20	1	4652665
RE MB80-MB 63X280-AVI	MB80	MB63	77.00	280.00	272.0	10.60	2	4652668

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
