TaeguTec Cutting Tools - Metal Working Tools - Boring System -

ST-MB-E : MB connection modular system with cylindrical carbide shanks.

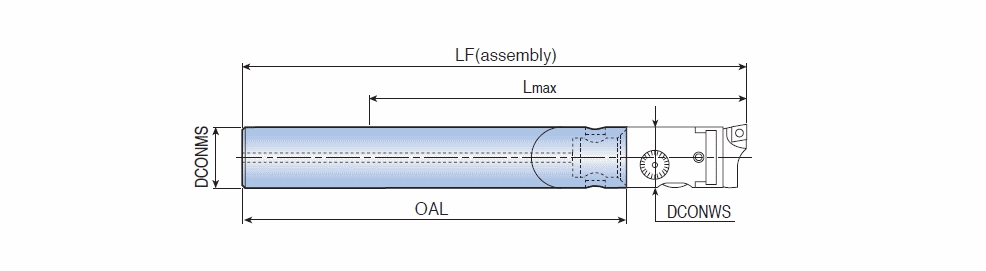

Designation	DCONMS	DCONWS	OAL	LF	Lmax		GICAT
ST 16-MB16X110E	MB16	16.00	110.00	144.00	100.0	0.29	4652670
ST 16-MB16X140E	MB16	16.00	140.00	174.00	125.0	0.17	4652671
ST 16-MB16X170E	MB16	16.00	170.00	204.00	160.0	0.45	4652672
ST 20-MB20X135E	MB20	20.00	135.00	175.00	125.0	0.40	4652674
ST 20-MB20X170E	MB20	20.00	170.00	210.00	160.0	0.69	4652675
ST 20-MB20X210E	MB20	20.00	210.00	250.00	200.0	0.86	4652676
ST 25-MB25X160E	MB25	25.00	160.00	210.00	160.0	0.98	4652677
ST 25-MB25X205E	MB25	25.00	205.00	255.00	200.0	0.48	4652678
ST 25-MB25X255E	MB25	25.00	255.00	305.00	250.0	1.64	4652679
ST 32-MB32X195E	MB32	32.00	195.00	258.00	200.0	1.96	4652680
ST 32-MB32X250E	MB32	32.00	250.00	313.00	250.0	2.50	4652681
ST 32-MB32X315E	MB32	32.00	315.00	378.00	320.0	3.30	4652682

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
