TaeguTec Cutting Tools - Metal Working Tools - Boring System -

IHRF-BW : Back Face Turning Toolholder for BHF fine boring hea ds

Designation	SS	DCN	DCX	BD	LF	WF	OAL	IC	IH	IIC	IIC_2	GICAT
IHRF 20-25BW	. ~	20.00	25.00	16.00	27.5	8.00	18.00	6.35~	16 ~	IS$$471634691995176 ~	IS$$553111559897244 ~	4652463
IHRF 24.5-32BW	. ~	24.50	32.00	20.00	33.5	8.50	22.50	6.35~	20 ~	IS$$471634691995176 ~	IS$$553111559897244 ~	4652467
IHRF 31.5-41.5BW	. ~	31.50	40.00	25.00	41.5	9.50	28.50	6.35~	25 ~	IS$$471634691995176 ~	IS$$553111559897244 ~	4652475
IHRF 38.5-51.5BW	. ~	39.00	52.00	32.00	53.0	11.00	35.50	6.35~	32 ~	IS$$471634691995176 ~	IS$$553111559897244 ~	4652484
IHRF 50.5-65BW	. ~	51.00	65.00	40.00	68.0	13.50	46.00	9.53~	40 ~	~	~	4652496
IHRF 56-802 BW	. ~	56.00	802.00	50.00	62.0	17.50	53.00	9.53~	50 ~	~	~	4652508

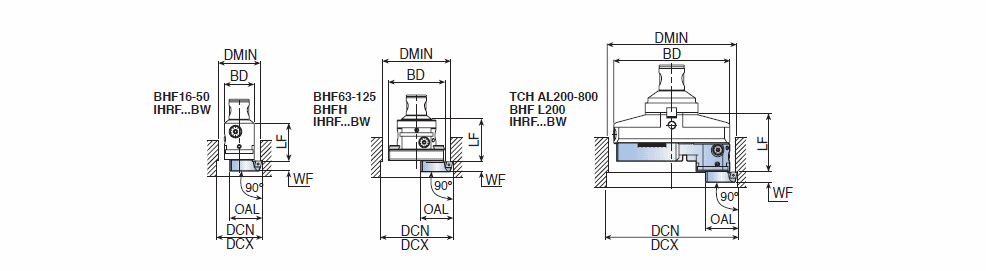

BD= Size of the boring head being used.
DMIN= (min bore diameter)= (DCN+BD+1)/2
