TaeguTec Cutting Tools - Metal Working Tools - Turning -

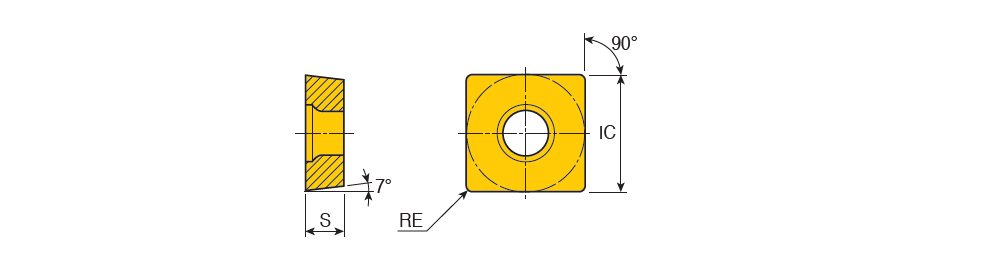

SCMT-FG : Positive Square inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SCMT 09T304 FG	9.52	3.97	0.40	4.40~	9.52~	FG ~	90~	7.00~	0.60	2.00	0.08	0.25	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	3~	ISO$SC09T3043NB$$04 ~	32.51 ~	SCMT ~	Y ~	9 ~	6212822		3		TT8080 TT9225 TT8115B
SCMT 09T308 FG	9.52	3.97	0.80	0.00~	9.52~	FG ~	90~	7.00~	0.60	2.00	0.10	0.25	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	3~	ISO$SC09T3083NB$$08 ~	32.52 ~	SCMT ~	Y ~	9 ~	6212968		7		TT8020 TT8080 TT9225 TT5100 TT8125B TT5080 TT8115B
