TaeguTec Cutting Tools - Metal Working Tools - Boring System -

BBH 30/40 : An extension slide for fine boring holders, used on the MB boring modular system.

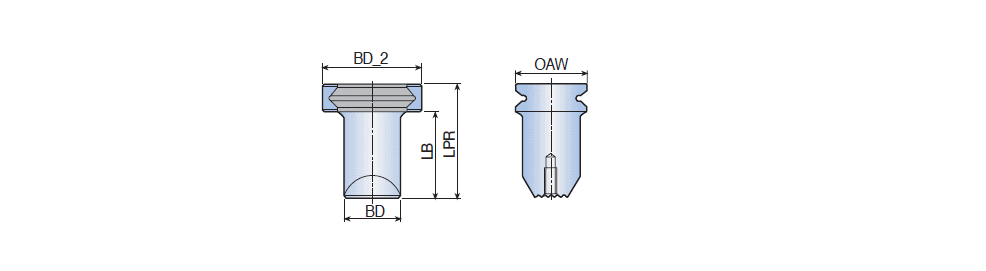

Designation	BD	LB	LPR	BD_2	OAW		S1	CSI	GICAT
BBH 30X40	25.00	40.0	52.50	43.00	30.5	0.26	0.00~	30 ~	4652420
BBH 30X70	25.00	70.0	82.50	43.00	30.5	0.37	0.00~	30 ~	4652421
BBH 30X115	27.00	115.0	127.50	43.00	30.5	0.63	0.00~	30 ~	4652422
BBH 40X69	32.00	69.0	86.00	56.00	40.0	0.69	0.00~	40 ~	4652423
BBH 40X114	32.00	114.0	131.00	56.00	40.0	0.99	0.00~	40 ~	4652424
BBH 40X189	38.00	189.0	206.00	56.00	40.0	1.94	0.00~	40 ~	4652425
