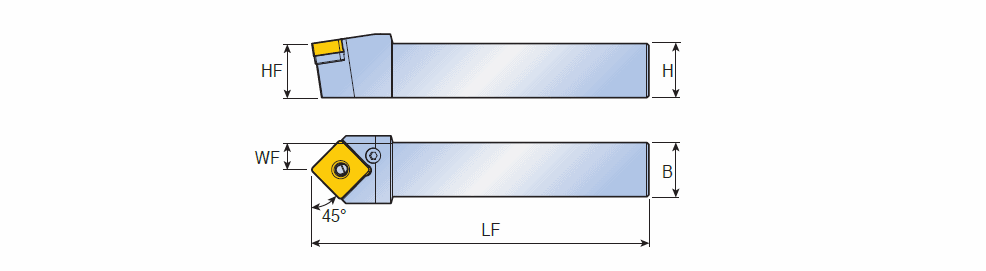

HSDNN-31 : Hook lever holders with 45° approach angle and SNMD 3109 inserts for Heavy turning

Designation	HF	H	B	LF	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
HSDNN 4040 S3109	40.0	40.0	40.0	250.00	20.00	31.75~	9.52~	0~	45.0~	HOOK LEVER ~	SQUARE ~	~	71E01A0E85121 ~	SNMD 310924 HT	IS$$52017707635060 ~	3606168		0
