TaeguTec Cutting Tools - Metal Working Tools - Turning -

2PLBNR/L : Double Lever clamping holder for 75° approach angle for Heavy duty machining with LNMX 5014 inserts

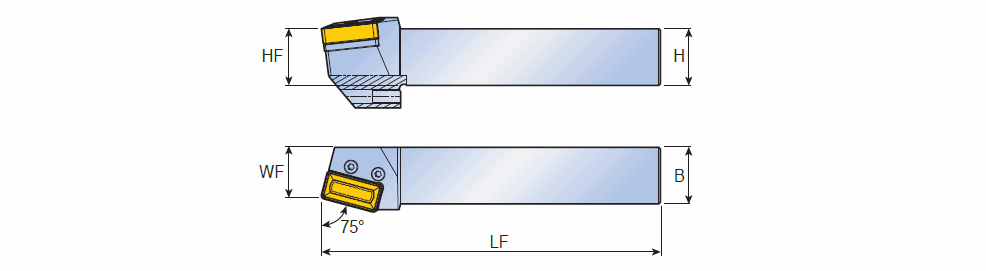

Right-hand shown

Designation	HF	H	B	LF	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
2PLBNL 5050 T5014	50.0	50.0	50.0	300.00	45.00	25.40~	14.20~	0~	75.0~	LEVER ~	SQUARE ~	L ~	71E01A0E85121 ~	LNMX 501432 HY	IS$$26012202249615 ~	3606398		0
2PLBNR 5050 T5014	50.0	50.0	50.0	300.00	45.00	25.40~	14.20~	0~	75.0~	LEVER ~	SQUARE ~	R ~	71E01A0E85121 ~	LNMX 501432 HY	IS$$26012202249615 ~	3606397		0
