TaeguTec Cutting Tools - Metal Working Tools - Turning -

CNMD-HT : Double-sided negative 80° Rhombic inserts of heavy roughing on Top side with low cutting force & finishing on Bottom side

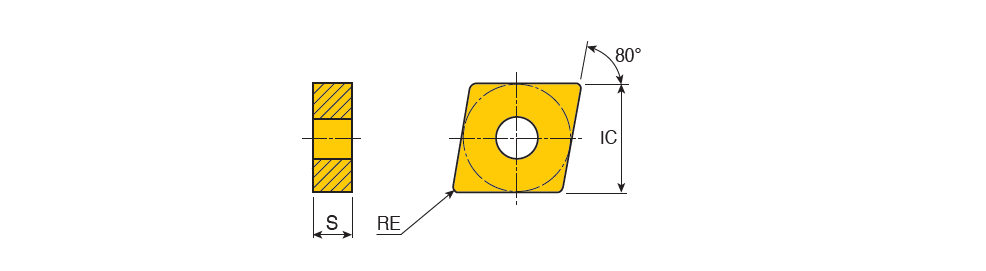

Designation	IC	l	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
CNMD 250924 HT	25.40	25.79~	9.52	2.40	HT ~	80~	0.00~	5.00	12.00	0.55	1.30	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8125B ~	2~	ISO$CN2509242NB$$24 ~	866 HT ~	CNMD ~	Y ~	25 ~	6212766		1		TT8125B
