TaeguTec Cutting Tools - Metal Working Tools - Turning -

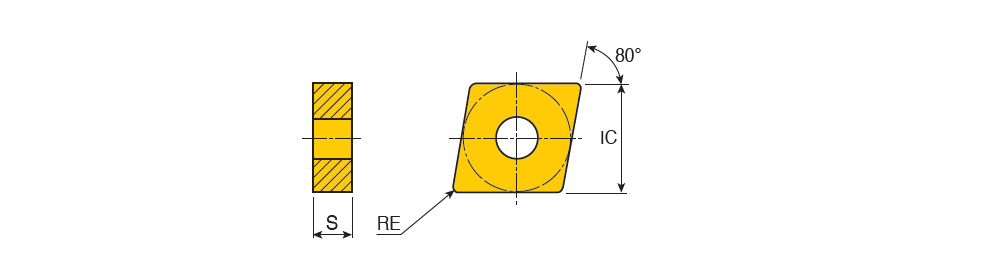

CNMD-HY : Double-sided negative 80° rhombic inserts of heavy roughing on one side of strong cutting edge & finishing on the other side

Designation	IC	l	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
CNMD 190624 HY	19.05	19.30~	6.35	2.40	HY ~	80~	0.00~	4.00	12.00	0.50	1.10	4~	~	U ~	C ~	71DD68D301C30 ~	CVD ~	8115B ~	2~	ISO$CN1906242NB$$24 ~	646 HY ~	CNMD ~	Y ~	~	6241793		1		TT8115B
