SNMD-HY : Double-sided negative Square inserts of heavy roughing on one side of strong cutting edge, and finishing on the other side

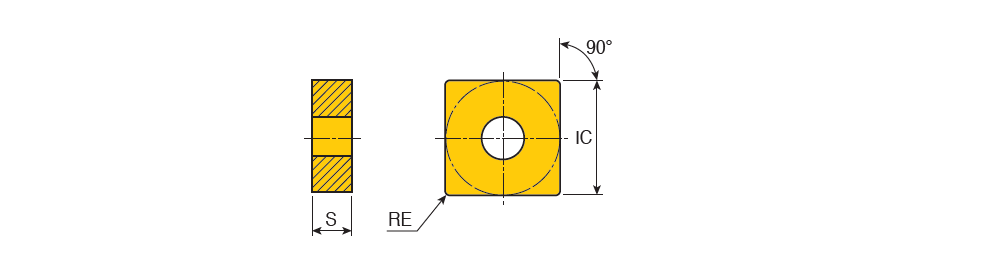

Designation	IC	l	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
SNMD 190624 HY	19.05	19.05~	6.35	2.40	HY ~	90~	0.00~	4.00	12.00	0.50	1.10	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1906242NB$$24 ~	646 HY ~	SNMD ~	Y ~	~	6213110		1		TT8115B
SNMD 250924 HY	25.40	25.40~	9.52	2.40	HY ~	90~	0.00~	4.00	15.00	0.55	1.50	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN2509242NB$$24 ~	866 HY ~	SNMD ~	Y ~	25 ~	6212762		1		TT8125B
