TaeguTec Cutting Tools - Metal Working Tools - Turning -

LNMX 191940-TWM : TOPRAIL insert for rail wheel medium machining.

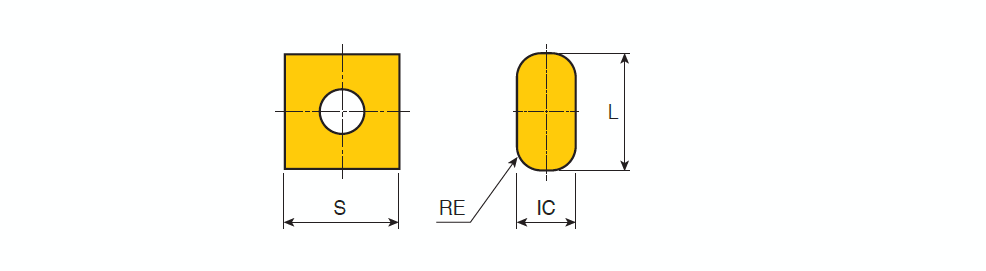

Designation	L	RE	IC	S	S1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	l	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
LNMX 191940 TWM	19.05	4.00	10.00	19.05	55.00~	TWM ~	80~	0.00~	1.50	9.00	0.45	1.50	2~	~	U ~	L ~	71DDA089C8D1E ~	0.00~	CVD ~	8105B ~	2~	ISO$LN1919402NA$$40 ~	191940 ~	LNMX ~	Y ~	~	6248087		3		TT8125B TT8115B TT8105B
