TaeguTec Cutting Tools - Metal Working Tools - Turning -

BDJCR/L-SH : TOPMINI Back Clamping Holder with 93° approach angle for Swiss automatic machine & positive 55° Rhombic insert of 7° clearance angle

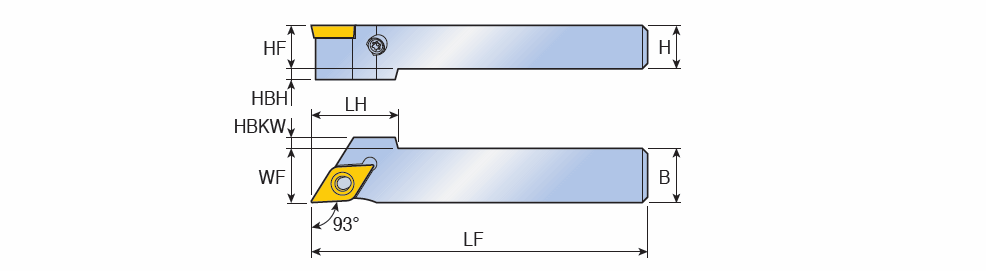

Right-hand shown

Designation	IC	HF	H	HBH	B	HBKW	LF	WF	LH	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID		IIC	IIC_2	IIC_3	IIC_4	GICAT	GIREM	giic	GICODE
BDJCR 1212 K11-SH	9.52~	12.0	12.0	1.0	12.0	2.0	125.00	12.00	20.0	3.97~	27~	93.0~	Back Clamp ~	SQUARE ~	R ~	71E01A0E85121 ~	DCMT 11T302 FA	X ~	IS$$1023930991875314 ~	IS$$1161173142749010 ~	IS$$1429709850404096 ~	IS$$1519702245489130 ~	3603663		0
