TaeguTec Cutting Tools - Metal Working Tools - Turning -

TRWR/L-TG : TOPRAIL holder for under flow type

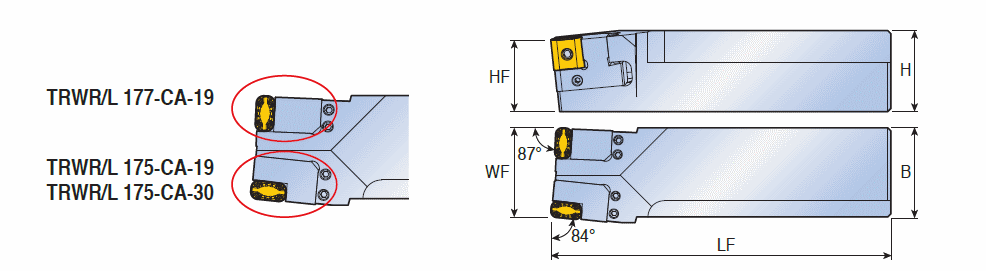

Right-hand shown

Designation	H	HF	B	LF	WF	S1	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	GICAT	GIREM	giic	GICODE
TRWL 50-55 TG	50.0	44.0	55.0	210.00	55.00	55.00~	87~	84.0~	LEVER ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$103989189369050 ~	3605369		0
TRWR 50-55 TG	50.0	44.0	55.0	210.00	55.00	55.00~	87~	84.0~	LEVER ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$103989189369050 ~	3605368		0

Cartridges are not included in TOPRAIL Holder, please order separately
