Turning
Main Application

PCLNR/L-D : Lever type holders with 95° approach angle for negative 80° Rhombic inserts and new reinforced Shim

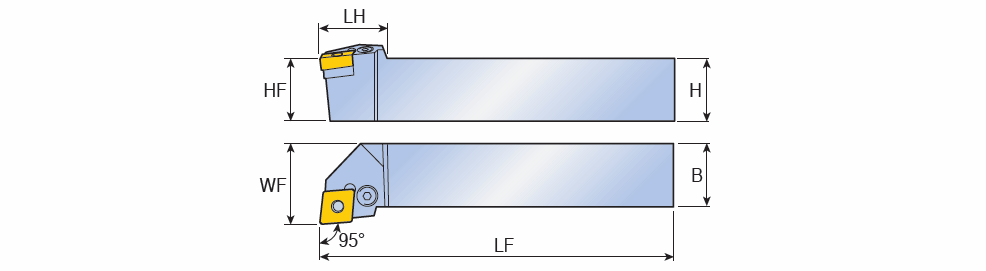

Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  PCLNL 2525 M1906D 25.025.025.0150.0038.032.0019.05~6.35~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3607464 0
  PCLNR 2525 M1906D 25.025.025.0150.0038.032.0019.05~6.35~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3607463 0
  PCLNL 3225 P1906D 32.032.025.0170.0038.032.0019.05~6.35~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3606968 0
  PCLNL 3232 P1906D 32.032.032.0170.0038.040.0019.05~6.35~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3606966 0
  PCLNR 3225 P1906D 32.032.025.0170.0038.032.0019.05~6.35~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3606967 0
  PCLNR 3232 P1906D 32.032.032.0170.0038.040.0019.05~6.35~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3606965 0
  PCLNL 4040 S1906D 40.040.040.0250.0038.050.0019.05~6.35~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3605902 0
  PCLNL 4040 S2509D 40.040.040.0250.0047.050.0025.40~9.52~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNMM 250924 HT IS$$104020421375780 ~3605904 0
  PCLNR 4040 S1906D 40.040.040.0250.0038.050.0019.05~6.35~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNGA 190612 IS$$331387765676730 ~3605901 0
  PCLNR 4040 S2509D 40.040.040.0250.0047.050.0025.40~9.52~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNMM 250924 HT IS$$104020421375780 ~3605903 0
  PCLNL 5050 T2509D 50.050.050.0300.0047.060.0025.40~9.52~95~95.0~LEVER ~SQUARE ~L ~71E01A0E85121 ~CNMM 250924 HT IS$$104020421375780 ~3605906 0
  PCLNR 5050 T2509D 50.050.050.0300.0047.060.0025.40~9.52~95~95.0~LEVER ~SQUARE ~R ~71E01A0E85121 ~CNMM 250924 HT IS$$104020421375780 ~3605905 0
