Turning
Main Application

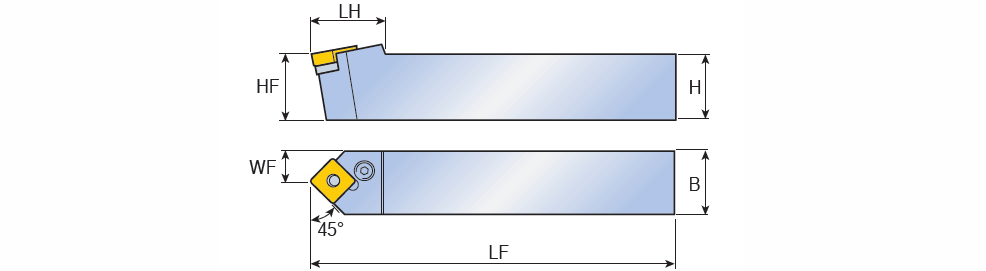

PSDNN-D : Lever type holders with 45° approach angle for negative Square inserts & new reinforced Shim


  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  PSDNN 3225 P1906D 32.032.025.0170.0040.512.5019.05~6.35~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMA 190612 IS$$233873743377690 ~3606974 0
  PSDNN 3232 P1906D 32.032.032.0170.0040.516.0019.05~6.35~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMA 190612 IS$$233873743377690 ~3606973 0
  PSDNN 4040 S1906D 40.040.040.0250.0040.520.0019.05~6.35~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMA 190612 IS$$233873743377690 ~3605923 0
  PSDNN 4040 S2509D 40.040.040.0250.0049.020.0025.40~9.52~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMM 250924 HT IS$$188783569081900 ~3605924 0
  PSDNN 5050 S1906D 50.050.050.0250.0040.525.0019.05~6.35~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMA 190612 IS$$233873743377690 ~3607465 0
  PSDNN 5050 T2509D 50.050.050.0300.0049.025.0025.40~9.52~0~45.0~LEVER ~SQUARE ~ ~71E01A0E85121 ~SNMM 250924 HT IS$$188783569081900 ~6341273 0
