TaeguTec Cutting Tools - Metal Working Tools - Turning -

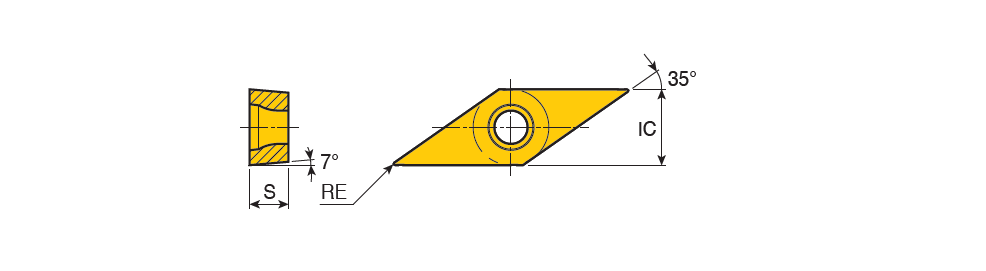

VCMT-PC 08/11 : Positive 35° Rhombic inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VCMT 080202 PC	4.76	2.38	0.20	8.00~	PC ~	35~	7.00~	0.20	1.50	0.02	0.15	2~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$VC0802023NB$$02 ~	1.51.5 ~	VCMT ~	Y ~	~	6241679	3	TT9225 TT8125B TT9215
VCMT 080204 PC	4.76	2.38	0.40	8.00~	PC ~	35~	7.00~	0.20	1.50	0.05	0.20	2~	~	U ~	V ~	71DD68D301C30 ~	Cermet+PVD ~	8115B ~	3~	ISO$VC0802043NB$$04 ~	1.51.5 ~	VCMT ~	Y ~	~	6212356	5	TT9225 TT8125B TT9215 TT8115B PV3010
VCMT 110304 PC	6.35	3.18	0.40	11.10~	PC ~	35~	7.00~	0.10	1.70	0.05	0.20	2~	~	U ~	V ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$VC1103043NB$$04 ~	221 PC ~	VCMT ~	Y ~	11 ~	6241255	5	TT9080 TT9225 TT8125B TT9215 TT8115B
