TaeguTec Cutting Tools - Metal Working Tools - Turning -

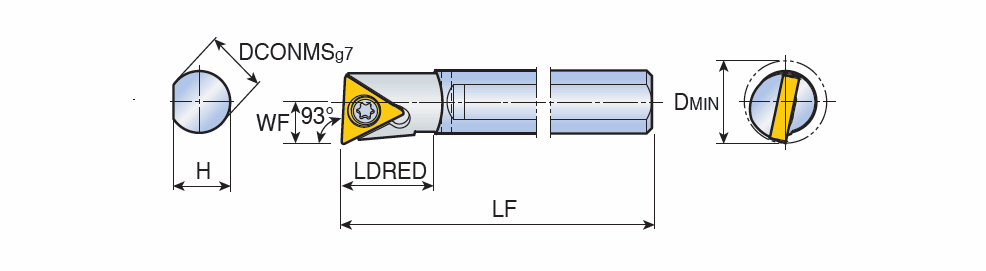

C-STUBR/L-D : TOPMINI screw type Carbide shank boring bar for positive Triangular inserts of 5° clearance angle & small components machining with 93° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
C06J STUBL 06-D08	6.00	5.5	100.00	8.6	4.00	8.00	3.97~	1.59~	0~	93.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	TBGT 060102 L-FF	IS$$48185370558833 ~	3606249		0
C06J STUBR 06-D08	6.00	5.5	100.00	8.6	4.00	8.00	3.97~	1.59~	0~	93.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	TBGT 060102 L-FF	IS$$48185898134094 ~	3606248		0
