Turning
Main Application

C-SWUBR/L-D : TOPMINI screw type & carbide shank boring bar with positive 80° Trigon inserts & 93° approach angle for small components machining

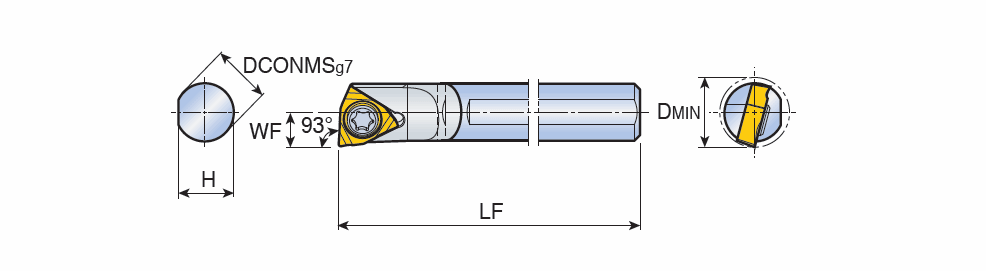

Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF DMIN IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  C05H SWUBL 06-D06 5.004.8100.00-~3.006.003.97~1.59~0~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~WBMT 060102 R-C IS$$91034566613809 ~3606239 0
  C05H SWUBR 06-D06 5.004.8100.00-~3.006.003.97~1.59~0~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~WBMT 060102 L-C IS$$91034516126512 ~3606238 0
  C06J SWUBL 06-D07 6.005.5110.00-~3.507.003.97~1.59~0~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~WBMT 060102 R-C IS$$91034566613809 ~3606241 0
  C06J SWUBR 06-D07 6.005.5110.00-~3.507.003.97~1.59~0~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~WBMT 060102 L-C IS$$91034516126512 ~3606240 0
  C07K SWUBL 06-D08 7.006.5125.00-~4.008.003.97~1.59~0~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~WBMT 060102 R-C IS$$91034566613809 ~3606243 0
  C07K SWUBR 06-D08 7.006.5125.00-~4.008.003.97~1.59~0~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~WBMT 060102 L-C IS$$91034516126512 ~3606242 0
