TaeguTec Cutting Tools - Metal Working Tools - Turning -

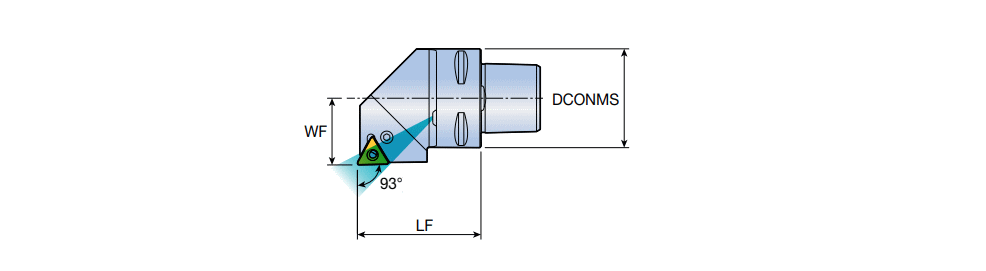

C*-HTJNR/L (RHINO) : C-ADAPTER Hook lever RHINOTURN with 93° approach angle for TN.. 1304 inserts

Right-hand shown

Designation	DCONMS	WF	LF	IC	t	CL	Tool typ	HAND	KAPR	Kr	ClssID	MIID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
C4-HTJNL 27050-1304	40	27.00	50.00	7.94~	4.76~	HOOK LEVER ~	C-ADAPTER ~	L	93.0~	0~	71E01A0EAF067 ~	TNMG 130408 PC	IS$$1246824274704309 ~	IS$$2403492800431608 ~	6113084		0
C4-HTJNR 27050-1304	40	27.00	50.00	7.94~	4.76~	HOOK LEVER ~	C-ADAPTER ~	R	93.0~	0~	71E01A0EAF067 ~	TNMG 130408 PC	IS$$1268976650380376 ~	IS$$2403492800431608 ~	6113083		0
