TaeguTec Cutting Tools - Metal Working Tools - Turning -

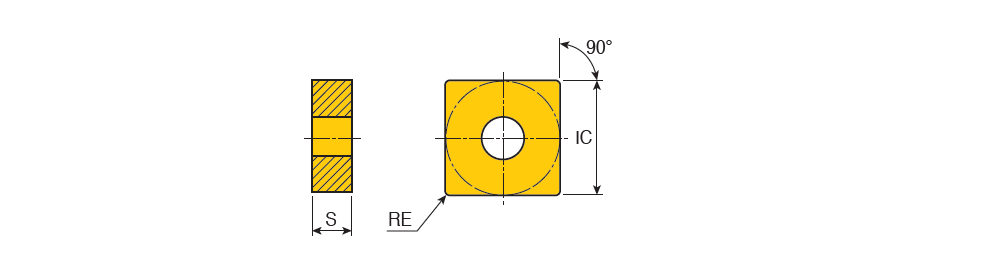

SNMM-RX : Single sided negative square type inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMM 120408 RX	12.70	4.76	0.80	12.70~	RX ~	90~	0.00~	0.70	7.00	0.20	0.55	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1204082NB$$08 ~	432 RX ~	SNMM ~	Y ~	12 ~	6214023	1	TT8125B
SNMM 120412 RX	12.70	4.76	1.20	12.70~	RX ~	90~	0.00~	1.00	7.00	0.25	0.70	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1204122NB$$12 ~	433 RX ~	SNMM ~	Y ~	~	6247913	2	TT8125B TT8115B
SNMM 150612 RX	15.88	6.35	1.20	15.88~	RX ~	90~	0.00~	1.00	9.00	0.25	0.70	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1506122NB$$12 ~	543 RX ~	SNMM ~	Y ~	15 ~	6242937	2	TT8135B TT8115B
SNMM 190612 RX	19.05	6.35	1.20	19.05~	RX ~	90~	0.00~	1.00	10.00	0.25	0.70	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	2~	ISO$SN1906122NB$$12 ~	643 RX ~	SNMM ~	Y ~	19 ~	6212232	1	TT8125B
SNMM 190616 RX	19.05	6.35	1.60	19.05~	RX ~	90~	0.00~	1.50	10.00	0.30	0.90	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN1906162NB$$16 ~	644 RX ~	SNMM ~	Y ~	19 ~	6234860	3	TT8135B TT8125B TT8115B
SNMM 190624 RX	19.05	6.35	2.40	19.05~	RX ~	90~	0.00~	2.00	10.00	0.35	1.10	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8105B ~	2~	ISO$SN1906242NB$$24 ~	646 RX ~	SNMM ~	Y ~	19 ~	6261905	3	TT8125B TT8115B TT8105B
SNMM 250724 RX	25.40	7.94	2.40	25.40~	RX ~	90~	0.00~	2.00	12.00	0.35	1.20	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN2507242NB$$24 ~	856 RX ~	SNMM ~	Y ~	25 ~	6234850	2	TT8125B TT8115B
SNMM 250924 RX	25.40	9.52	2.40	25.40~	RX ~	90~	0.00~	2.00	12.00	0.35	1.20	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8115B ~	2~	ISO$SN2509242NB$$24 ~	866 RX ~	SNMM ~	Y ~	~	6248553	3	TT8135B TT8125B TT8115B
