TaeguTec Cutting Tools - Metal Working Tools - Turning -

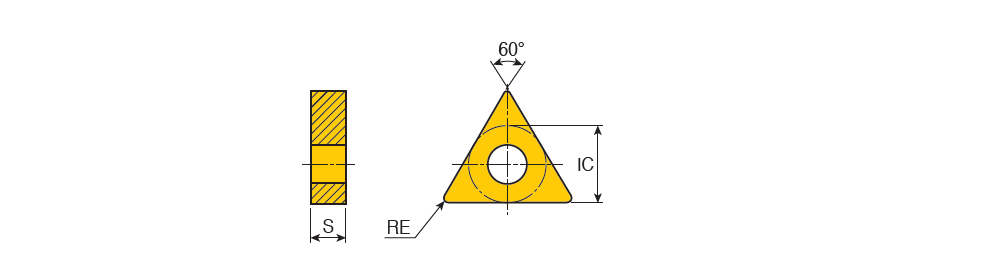

TNMM-RX : Single sided negative triangular inserts for semi heavy roughing of steel, stainless steel and cast iron with low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TNMM 160408 RX	9.52	4.76	0.80	16.50~	RX ~	60~	0.00~	0.70	6.00	0.20	0.55	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN1604082NB$$08 ~	332 RX ~	TNMM ~	Y ~	16 ~	6212366	1	TT8125B
TNMM 220408 RX	12.70	4.76	0.80	22.00~	RX ~	60~	0.00~	0.70	7.50	0.20	0.55	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN2204082NB$$08 ~	432 RX ~	TNMM ~	Y ~	22 ~	6212362	1	TT8125B
TNMM 220412 RX	12.70	4.76	1.20	22.00~	RX ~	60~	0.00~	1.00	7.50	0.25	0.70	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN2204122NB$$12 ~	433 RX ~	TNMM ~	Y ~	22 ~	6212361	1	TT8125B
