TaeguTec Cutting Tools - Metal Working Tools - Turning -

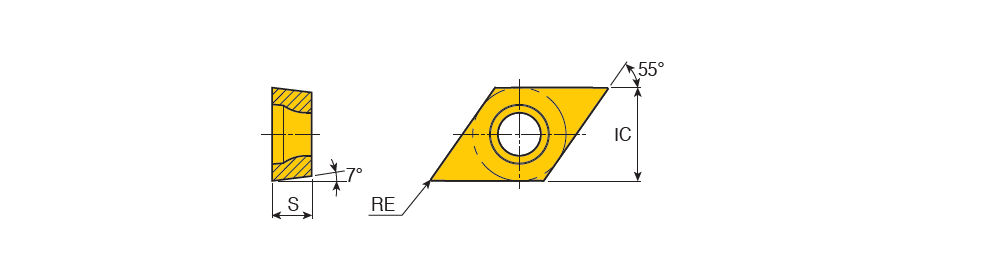

DCMT-PC : Positive 55° Rhombic inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DCMT 070204 PC	6.35	2.38	0.40	7.70~	PC ~	55~	7.00~	0.30	2.00	0.06	0.18	2~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	TT9080~	3~	ISO$DC0702043NB$$04 ~	21.51 ~	DCMT ~	Y ~	7 ~	6139529	3	TT9080 TT9225 TT9215
DCMT 070208 PC	6.35	2.38	0.80	7.70~	PC ~	55~	7.00~	0.40	2.00	0.08	0.25	2~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8125B ~	3~	ISO$DC0702083NB$$08 ~	21.52 ~	DCMT ~	Y ~	7 ~	6212218	4	TT9080 TT9225 TT8125B TT9215
DCMT 11T304 PC	9.52	3.97	0.40	11.60~	PC ~	55~	7.00~	0.35	3.00	0.08	0.25	2~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	3~	ISO$DC11T3043NB$$04 ~	32.51 ~	DCMT ~	Y ~	11 ~	6240528	6	TT9080 TT9225 TT8125B TT9215 TT8115B TT8105B
DCMT 11T308 PC	9.52	3.97	0.80	11.60~	PC ~	55~	7.00~	0.50	3.00	0.10	0.28	2~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8105B ~	0~	~	~	~	~	11 ~	6294624	7	TT9080 TT9225 TT8125B TT9215 TT8115B TT8115B TT8105B
DCMT 11T312 PC	9.52	3.97	1.20	11.60~	PC ~	55~	7.00~	0.50	3.00	0.12	0.32	2~	~	U ~	D ~	71DD68D301C30 ~	CVD ~	8115B ~	3~	ISO$DC11T3123NB$$12 ~	32.53 ~	DCMT ~	Y ~	11 ~	6212350	5	TT9080 TT9225 TT8125B TT9215 TT8115B

Click the Better Suggestions icon to see more choices.
