TaeguTec Cutting Tools - Metal Working Tools - Turning -

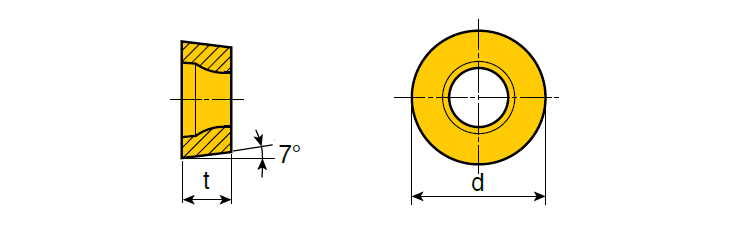

RCMT-PC : Positive Round inserts with 7° clearance angle & low cutting force for medium applications on wide variety of materials

Designation	d	t	CB	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	l	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RCMT 120400 PC	12.00	4.76	PC ~	0~	7.00~	2.00	5.00	0.30	0.60	0~	~	U ~	R ~	71D1AA6635E76 ~	0.00~	CVD ~	8105B ~	3~	ISO$RC1204MO3NB$$MO ~	120400 ~	RCMT ~	Y ~	12 ~	6212816		6		TT9235 TT9225 TT8125B TT5080 TT9215 TT8105B
