TaeguTec Cutting Tools - Metal Working Tools - Turning -

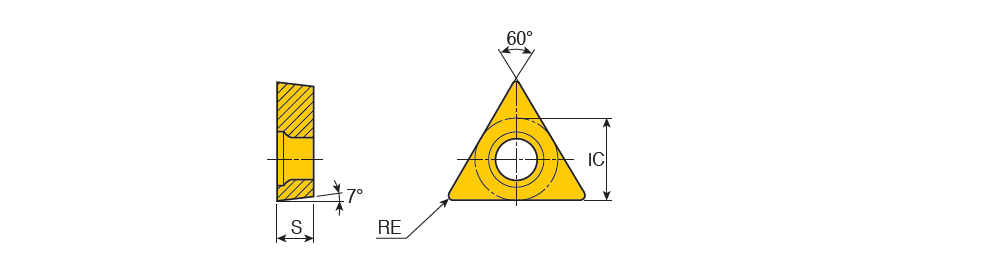

TCMT-PC : Positive Triangular inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TCMT 090204 PC	5.56	2.38	0.40	9.60~	PC ~	60~	7.00~	0.30	2.00	0.06	0.18	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT9080~	3~	ISO$TC0902043NB$$04 ~	731 PC ~	TCMT ~	Y ~	9 ~	6139540	3	TT9080 TT9225 TT9215
TCMT 090208 PC	5.56	2.38	0.80	9.60~	PC ~	60~	7.00~	0.40	2.00	0.08	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT9080~	3~	ISO$TC0902083NB$$08 ~	732 PC ~	TCMT ~	Y ~	9 ~	6139541	3	TT9080 TT9225 TT9215
TCMT 110204 PC	6.35	2.38	0.40	11.00~	PC ~	60~	7.00~	0.30	2.50	0.06	0.20	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	3~	ISO$TC1102043NB$$04 ~	21.51 ~	TCMT ~	Y ~	11 ~	6212214	4	TT9080 TT9225 TT8125B TT9215
TCMT 110208 PC	6.35	2.38	0.80	11.00~	PC ~	60~	7.00~	0.42	2.50	0.09	0.26	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	3~	ISO$TC1102083NB$$08 ~	21.52 ~	TCMT ~	Y ~	11 ~	6212223	4	TT9080 TT9225 TT8125B TT9215
TCMT 16T304 PC	9.52	3.97	0.40	16.50~	PC ~	60~	7.00~	0.35	3.00	0.08	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8115B ~	3~	ISO$TC16T3043NB$$04 ~	32.51 ~	TCMT ~	Y ~	16 ~	6212541	5	TT9080 TT9225 TT8125B TT9215 TT8115B
TCMT 16T308 PC	9.52	3.97	0.80	16.50~	PC ~	60~	7.00~	0.50	3.00	0.10	0.28	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT9080~	3~	ISO$TC16T3083NB$$08 ~	32.52 ~	TCMT ~	Y ~	16 ~	6139544	3	TT9080 TT9225 TT9215
TCMT 16T312 PC	9.52	3.97	1.20	16.50~	PC ~	60~	7.00~	0.60	3.00	0.12	0.36	3~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	3~	ISO$TC16T3123NB$$12 ~	32.53 ~	TCMT ~	Y ~	16 ~	6212341	4	TT9080 TT9225 TT8125B TT9215
