TaeguTec Cutting Tools - Metal Working Tools - Turning -

DCGT-CB(PCD) : Positive 55° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force

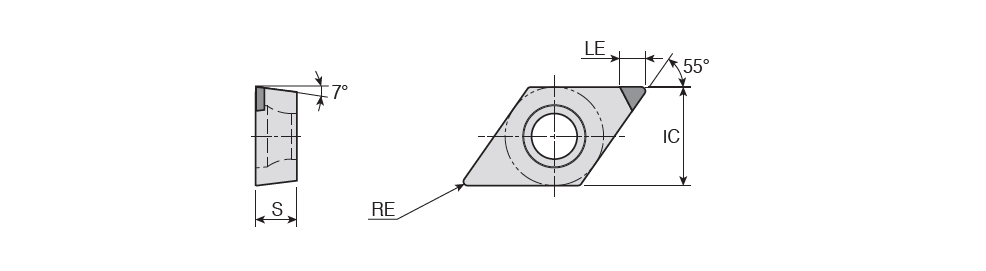

Designation	IC	S	RE	LE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
DCGT 070202 CB	6.35	2.38	0.20	3.40	CB ~	55~	7.00~	0.50	1.50	0.10	0.50	1~	P ~	~	7.75~	D ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$DC0702023NB$$02 ~	21.50. ~	DCGT ~	Y ~	7 ~	6308148	1	TD1020
DCGT 070204 CB	6.35	2.38	0.40	3.30	CB ~	55~	7.00~	0.50	1.50	0.10	0.50	1~	P ~	~	7.75~	D ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$DC0702043NB$$04 ~	21.51 ~	DCGT ~	Y ~	7 ~	6308149	1	TD1020
DCGT 11T302 CB	9.52	3.97	0.20	4.90	CB ~	55~	7.00~	0.50	2.50	0.10	0.50	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$DC11T3023NB$$02 ~	32.50. ~	DCGT ~	Y ~	11 ~	6308150	1	TD1020
DCGT 11T304 CB	9.52	3.97	0.40	4.70	CB ~	55~	7.00~	0.50	2.50	0.10	0.50	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$DC11T3043NB$$04 ~	32.51 ~	DCGT ~	Y ~	11 ~	6264363	1	TD1020
DCGT 11T308 CB	9.52	3.97	0.80	4.40	CB ~	55~	7.00~	0.50	2.50	0.10	0.50	1~	P ~	~	11.60~	D ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$DC11T3083NB$$08 ~	32.52 ~	DCGT ~	Y ~	11 ~	6264364	1	TD1020
