TaeguTec Cutting Tools - Metal Working Tools - Turning -

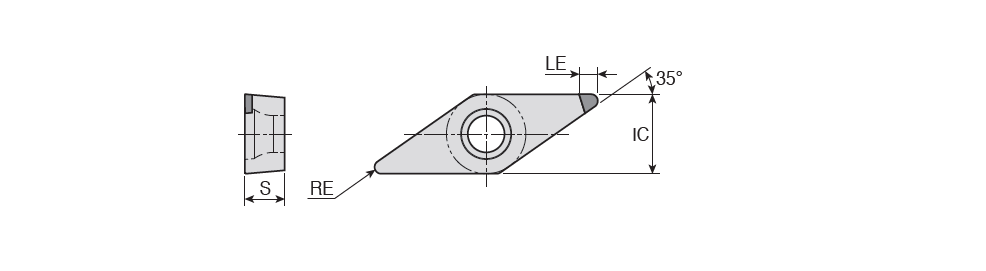

VCGT-CB(PCD) : Positive 35° Rhombic inserts with Serrated PCD cutting edge for maximum chip control & low cutting force

Designation	LE	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VCGT 110302 CB	4.70	6.35	3.18	0.20	CB ~	35~	7.00~	0.50	2.00	0.10	0.50	1~	P ~	~	11.10~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VC1103023NB$$02 ~	220.5 ~	VCGT ~	Y ~	11 ~	6264368	1	TD1020
VCGT 110304 CB	5.00	6.35	3.18	0.40	CB ~	35~	7.00~	0.50	2.00	0.10	0.50	1~	P ~	~	11.10~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VC1103043NB$$04 ~	221 CB ~	VCGT ~	Y ~	11 ~	6264369	1	TD1020
VCGT 160412 CB	6.20	9.52	4.76	1.20	CB ~	35~	7.00~	0.50	3.50	0.10	0.50	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VC1604123NB$$12 ~	333 CB ~	VCGT ~	Y ~	16 ~	6264372	1	TD1020
VCGT 160408 CB	6.40	9.52	4.76	0.80	CB ~	35~	7.00~	0.50	3.50	0.10	0.50	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	KP300 ~	3~	ISO$VC1604083NB$$08 ~	332 CB ~	VCGT ~	Y ~	16 ~	6264371	2	KP300 TD1020
VCGT 220530 CB	6.40	12.70	5.56	3.00	CB ~	35~	7.00~	0.50	3.50	0.10	0.50	1~	P ~	~	22.10~	V ~	71DD68D301C30 ~	PCD ~	KP300 ~	3~	ISO$VC2205303NB$$30 ~	43.57. ~	VCGT ~	Y ~	22 ~	5402188	1	KP300
VCGT 160404 CB	7.30	9.52	4.76	0.40	CB ~	35~	7.00~	0.50	3.50	0.10	0.50	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VC1604043NB$$04 ~	331 CB ~	VCGT ~	Y ~	16 ~	6264370	1	TD1020
