TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

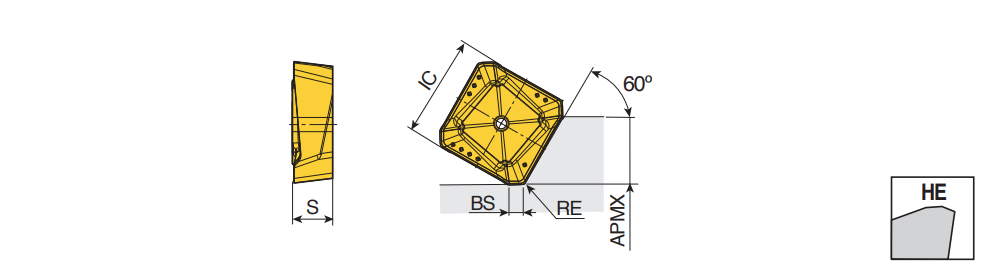

SCKN 21/27-HE : Thicker positive square inserts with four helical cutting edges for heavy industry of 60° face mills

Designation	IC	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SCKN 2107 DDTR-HE	20.80	7.00	2.00	1.50	13.00	21.00~	3.50	10.50	0.250	0.125	M10 ~	4~	LM-SC21 ~	S ~	71DD68D829217 ~	U60 ~	HE ~	TT7080~	IS$$230769526723295 ~	SCKN 21 ~	0~	6178800		2		TT7080 TT7515
SCKN 2708 DDTR-HE	26.80	8.95	2.00	2.00	18.00	27.00~	5.00	15.40	0.300	0.150	M10 ~	4~	LM-SC27 ~	S ~	~	U60 ~	HE ~	8525B ~	IS$$106348310304840 ~	SCKN 27 ~	0~	6336901		1		TT8525B
