TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

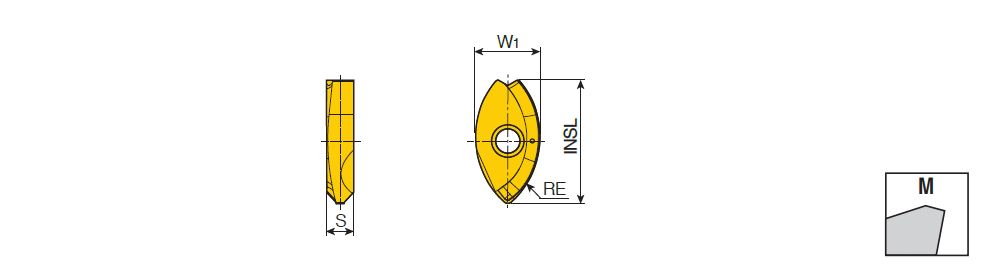

3FB C-M/P-M : Ball nose inserts with two helical cutting edges for three effective ball end mills for rough & semi-finish profiling in double-sided types of center (C-M) or periphery (P-M) sides

Designation	INSL	W1	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3FB320P-M	21.00	9.87	5.20	16.00	16.00	32.00~	4.80	12.80	0.150	0.080	M6 ~	3B-32 ~	B ~	71DDA089C8D1E ~	2~	U60-CS ~	M ~	TT8080~	IS$$28998291716010 ~	3FB320P ~	0~	5613309	2	TT8080 TT9080
3FB320C-M	23.00	11.96	5.20	16.00	16.00	32.00~	4.50	13.00	0.150	0.080	M6 ~	3B-32 ~	B ~	71DDA089C8D1E ~	2~	U60-CS ~	M ~	TT8080~	IS$$28998291716010 ~	3FB320C ~	0~	5613306	2	TT8080 TT9080
3FB500P-M	32.90	15.34	7.00	25.00	25.00	50.00~	7.50	20.00	0.300	0.080	M6 ~	3B-50 ~	B ~	71DDA089C8D1E ~	2~	U60-CS ~	M ~	TT8080~	IS$$29020601289390 ~	3FB500P ~	0~	5613157	2	TT8080 TT9080
3FB500C-M	36.00	18.63	7.00	25.00	25.00	50.00~	7.50	20.00	0.300	0.150	M6 ~	3B-50 ~	B ~	71DDA089C8D1E ~	2~	U60-CS ~	M ~	TT8080~	IS$$29020601289390 ~	3FB500C ~	0~	5613153	2	TT8080 TT9080
