NFB-SM : Precision ball nose type inserts with high helical cutting edge for hardened steels and coolant channels on finishing and seme-finishing applications

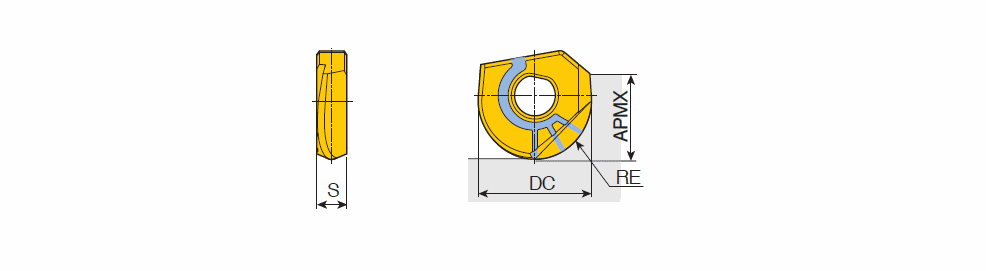

Designation	S1	DC	S	RE	APMX	S2	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
NFB 060-SM	1.00~	6.00	2.00	3.00	4.50	6 ~	FB-06 ~	0.05	0.20	0.150	0.050	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$264189580494120 ~	NFB 060 ~	0~	6111850	2	TT5515 TT2510
NFB 080-SM	2.00~	8.00	2.20	4.00	6.90	8 ~	FB-08 ~	1.20	3.20	0.250	0.050	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$58045326570432 ~	NFB 080 ~	0~	6111681	3	TT5525 TT5515 TT2510
NFB 100-SM	2.00~	10.00	2.70	5.00	8.20	10 ~	FB-10 ~	1.50	4.00	0.250	0.050	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$96191134674515 ~	NFB 100 ~	0~	6111688	3	TT5525 TT5515 TT2510
NFB 120-SM	2.00~	12.00	3.20	6.00	12.70	12 ~	FB-12 ~	1.80	4.80	0.350	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$125109954190776 ~	NFB 120 ~	0~	6111695	3	TT5525 TT5515 TT2510
NFB 160-SM	2.00~	16.00	4.20	8.00	12.70	16 ~	FB-16 ~	2.40	6.40	0.350	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$115429599161760 ~	NFB 160 ~	0~	6111701	3	TT5525 TT5515 TT2510
NFB 200-SM	2.00~	20.00	5.20	10.00	14.70	20 ~	FB-20 ~	3.00	8.00	0.350	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$106172470573365 ~	NFB 200 ~	0~	6111707	3	TT5525 TT5515 TT2510
NFB 250-SM	2.00~	25.00	6.20	12.50	17.40	25 ~	FB-25 ~	3.75	10.00	0.450	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$106076507475834 ~	NFB 250 ~	0~	6111713	3	TT5525 TT5515 TT2510
NFB 300-SM	2.00~	30.00	7.20	15.00	19.20	30 ~	FB-30 ~	4.50	12.00	0.450	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$125141389645560 ~	NFB 300 ~	0~	6111722	3	TT5525 TT5515 TT2510
NFB 320-SM	2.00~	32.00	7.20	16.00	19.20	32 ~	FB-32 ~	4.80	12.80	0.450	0.080	M6 ~	R ~	71DDA089C8D1E ~	2~	G60 ~	SM ~	TT2510~	IS$$144466536257296 ~	NFB 320 ~	0~	6111728	3	TT5525 TT5515 TT2510
