TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

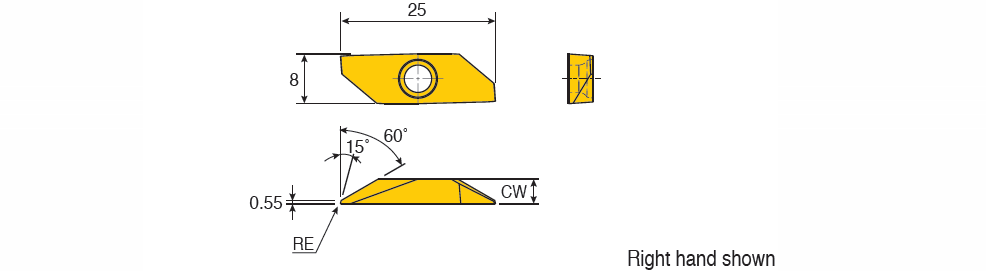

TVRR/L : Reverse turning for swiss automatics

Designation	CW	RE	CDX	S1	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	HAND	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TVRR 40003-60	3.97	0.03	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	0.00	0.00	P6 ~	R ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$235677799256656 ~	6877297		1		TT9010
TVRR 40010-60	3.97	0.10	5.50	1.00~	L ~	0.020~	0.10	5.50	0.01	0.15	0.00	0.00	P6 ~	R ~	71DDA089C8D1E ~	2~	PVD ~	S ~	TT9010~	IS$$235677799256656 ~	6806839		1		TT9010
