TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNGX-CERAMIC : Negative Square ground Ceramic Dimple inserts for cast iron roughing

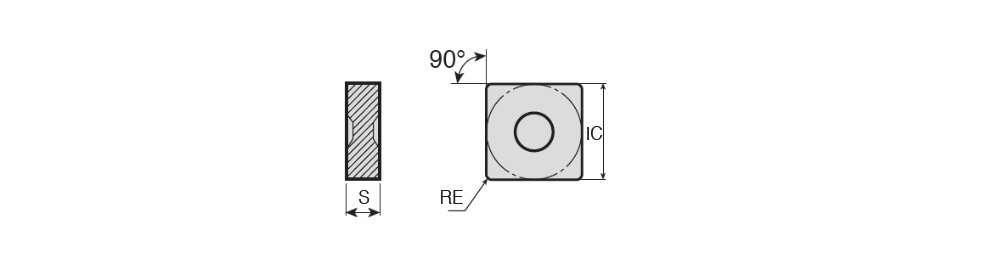

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNGX 120712 CH	12.70	7.94	1.20	12.70~	90~	0.00~	0.10	3.00	0.05	0.30	8~	P ~	~	S ~	71DD68D829217 ~	Ceramic ~	AS10 ~	2~	ISO$SN1207122NA$$12 ~	453 CH ~	SNGX ~	Y ~	12 ~	5702255	2	AS10 SC10
SNGX 120712 T7-CH	12.70	7.94	1.20	12.70~	90~	0.00~	0.10	3.00	0.05	0.30	8~	P ~	~	S ~	71DD68D829217 ~	Ceramic ~	AS500 ~	2~	ISO$SN1207122NA$$12 ~	453 T7 ~	SNGX ~	Y ~	12 ~	5702542	1	AS500
SNGX 120716 CH	12.70	7.94	1.60	12.70~	90~	0.00~	0.10	3.00	0.05	0.35	8~	P ~	~	S ~	71DD68D829217 ~	Ceramic ~	AS10 ~	2~	ISO$SN1207162NA$$16 ~	454 CH ~	SNGX ~	Y ~	12 ~	5701746	2	AS10 SC10
SNGX 120716 T7-CH	12.70	7.94	1.60	12.70~	90~	0.00~	0.10	3.00	0.05	0.35	8~	P ~	~	S ~	71DD68D829217 ~	Ceramic ~	AS10 ~	2~	ISO$SN1207162NA$$16 ~	454 T7 ~	SNGX ~	Y ~	12 ~	5702732	2	AS10 AS500
SNGX 150716 T7-CH	15.88	7.94	1.60	12.70~	90~	0.00~	0.10	3.50	0.05	0.35	8~	P ~	~	S ~	71DD68D829217 ~	Ceramic ~	AS10 ~	2~	ISO$SN1507162NA$$16 ~	554 T7 ~	SNGX ~	Y ~	15 ~	5702237	1	AS10

CH : Dimple type
T7: Land 0.20 x 20°
