TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TNFR-M : Modular end mill holders dedicated for corner R of NFR and finishing operations with T-FLEXTEC adaptations

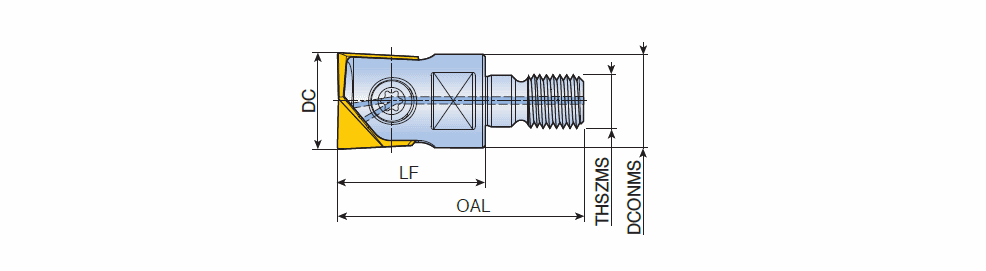

Designation	Tool sty	DC	DCONMS	LF	OAL	THSZMS	S2	S3	e		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	RE	CCTMS	CCFMS	CICT	IIC	IIC_2	TQ_3	ZEFF	ZEFP	GICAT
TNFR 100-M06	MODULAR ~	10.00	9.70	20.00	34.50	M06	10 ~	11 ~	3 ~	0.01	90.0~	~	~	F ~	FB-10R ~	71E01A05D27A8 ~	NFR 100A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$134856986011350 ~	~	0~	2~	2~	3109566
TNFR 120-M06	MODULAR ~	12.00	11.50	23.00	37.50	M06	12 ~	13 ~	3 ~	0.02	90.0~	~	~	RF ~	FB-12R ~	71E01A05D27A8 ~	NFR 120A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$154109787991788 ~	IS$$173441978498484 ~	0~	2~	2~	3109567
TNFR 120-M08	MODULAR ~	12.00	13.00	23.00	40.50	M08	12 ~	13 ~	3 ~	0.02	90.0~	~	~	RF ~	FB-12R ~	71E01A05D27A8 ~	NFR 120A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$154109787991788 ~	IS$$173441978498484 ~	0~	2~	2~	3109568
TNFR 160-M08	MODULAR ~	16.00	13.00	30.00	47.50	M08	16 ~	17 ~	3 ~	0.04	90.0~	~	~	RC ~	FB-16R ~	71E01A05D27A8 ~	NFR 160A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$125086661624496 ~	IS$$163755808434192 ~	0~	2~	2~	3109569
TNFR 200-M10	MODULAR ~	20.00	19.00	30.00	50.00	M10	20 ~	21 ~	3 ~	0.07	90.0~	~	~	RC ~	FB-20R ~	71E01A05D27A8 ~	NFR 200A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$125506178038429 ~	IS$$154504575708193 ~	0~	2~	2~	3109570
TNFR 250-M12	MODULAR ~	25.00	24.00	35.00	57.00	M12	25 ~	26 ~	3 ~	0.13	90.0~	~	~	C ~	FB-25R ~	71E01A05D27A8 ~	NFR 250A-R03	O ~	0.0~	0.30~	SAI ~	02 ~	2~	IS$$135084653461184 ~	IS$$154408634375982 ~	0~	2~	2~	3109573
TNFR 320-M16	MODULAR ~	32.00	29.50	43.00	68.00	M16	32 ~	32 ~	3 ~	0.27	90.0~	~	~	C ~	FB-32R ~	71E01A05D27A8 ~	NFR 300A-R05	O ~	0.0~	0.50~	SAI ~	02 ~	2~	IS$$239910525653146 ~	~	0~	2~	2~	6140837
