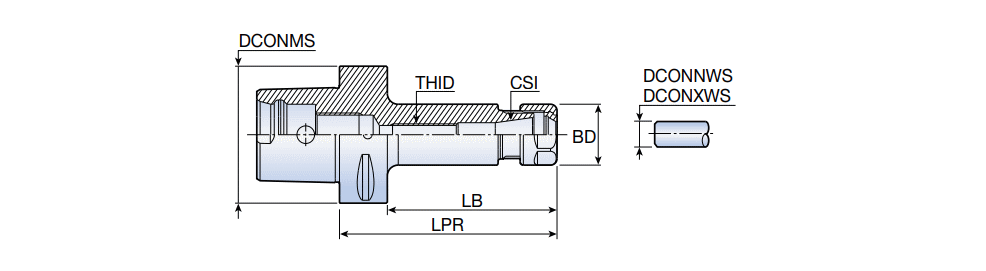

C-ER-M(MINI) : DIN 6499 ER mini collet chucks with C-ADAPTER (ISO 26623-1)

Designation	SS	CSI	DCONNWS	DCONXWS	BD	LPR	LB	THID		S1	ClssID	LTA	GICAT
C4 ER16X70 M	40	ER16	0.50	10.00	22.00	70.00	50.0	M10	0.32	0.00~	~	59.40~	4656239
C5 ER16X100 M	50	ER16	0.50	10.00	22.00	100.00	80.0	M10	0.57	0.00~	71EAD3871D313 ~	89.40~	4656147
C5 ER16X130 M	50	ER16	0.50	10.00	22.00	130.00	120.0	M10	0.67	0.00~	71EAD3871D313 ~	119.40~	4656148
C6 ER16X100 M	63	ER16	0.50	10.00	22.00	100.00	78.0	M10	0.90	0.00~	71EAD3871D313 ~	89.40~	4655472
C6 ER16X130 M	63	ER16	0.50	10.00	22.00	130.00	108.0	M10	0.97	0.00~	71EAD3871D313 ~	119.40~	4655474
C6 ER16X160 M	63	ER16	0.50	10.00	22.00	160.00	138.0	M10	1.07	0.00~	71EAD3871D313 ~	149.40~	4655476
