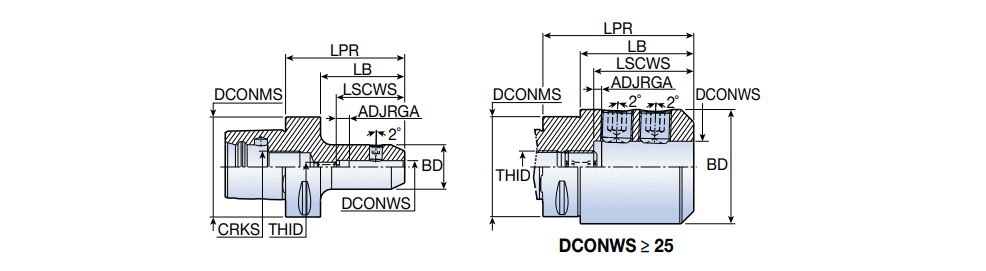

C-EM-E : Whistle notch DIN 6359 / DIN 1835 form E end mill holders with C-ADAPTER (ISO 26623-1) taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005
  DesignationDCONMS DCONWS BD LPR LB Lmin LSCWS ADJRGA CRKS THID S1 L2 Shank ClssID LTA CCTWS CCFWS GICATGIREMgiicGICODE
  C4 EM8X70 E 40 8.0028.0070.0050.035.0~43.08.00M14 M6 0.460.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4656193 0
  C5 EM6X70 E 50 6.0025.0070.0050.030.0~35.05.00M16 M5 0.600.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4655493 0
  C5 EM8X70 E 50 8.0028.0070.0050.035.0~43.08.00M16 M6 0.640.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4655495 0
  C5 EM10X70 E 50 10.0035.0070.0050.039.0~45.06.00M16 M8 0.750.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4655497 0
  C5 EM12X75 E 50 12.0042.0075.0055.044.0~49.05.00M16 M10 1.010.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4655499 0
  C5 EM14X75 E 50 14.0044.0075.0055.044.0~49.05.00M16 M10 0.970.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4655501 0
  C5 EM16X80 E 50 16.0048.0080.0060.047.0~52.05.00M16 M12 1.210.00~80.00~W ~71EAD3871D313 ~80.00~ZYL ~13 ~4655503 0
  C5 EM18X80 E 50 18.0050.0080.0060.047.0~52.05.00M16 M12 1.180.00~80.00~W ~71EAD3871D313 ~80.00~ZYL ~13 ~4655505 0
  C5 EM20X85 E 50 20.0052.0085.0065.049.0~55.06.00M16 M16 1.290.00~85.00~W ~71EAD3871D313 ~85.00~ZYL ~13 ~4655507 0
  C6 EM6X75 E 63 6.0025.0075.0053.030.0~36.06.00M20 M5 0.930.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4655510 0
  C6 EM8X75 E 63 8.0028.0075.0053.035.0~43.08.00M20 M6 1.000.00~75.00~W ~ ~75.00~ZYL ~13 ~4655512 0
  C6 EM10X75 E 63 10.0035.0075.0053.039.0~46.07.00M20 M8 2.500.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4655514 0
  C6 EM12X80 E 63 12.0042.0080.0058.044.0~49.05.00M20 M10 1.610.00~80.00~W ~ ~80.00~ZYL ~13 ~4655516 0
  C6 EM14X80 E 63 14.0044.0080.0058.044.0~49.05.00M20 M10 1.340.00~80.00~W ~71EAD3871D313 ~80.00~ZYL ~13 ~4655518 0
  C6 EM16X85 E 63 16.0048.0085.0063.047.0~52.05.00M20 M12 1.490.00~85.00~W ~71EAD3871D313 ~85.00~ZYL ~13 ~4655520 0
  C6 EM20X85 E 63 20.0052.0085.0063.049.0~55.06.00M20 M16 1.570.00~85.00~W ~71EAD3871D313 ~85.00~ZYL ~13 ~4655524 0
  C6 EM25X90 E 63 25.0065.0090.0068.054.0~60.06.00M20 M20 2.100.00~90.00~W ~71EAD3871D313 ~90.00~ZYL ~13 ~4655526 0
  C6 EM32X95 E 63 32.0072.0095.0073.058.0~63.05.00M20 M20 2.500.00~95.00~W ~71EAD3871D313 ~95.00~ZYL ~13 ~4655528 0
  C8 EM6X65E 80 6.0025.0065.0035.030.0~36.06.00M20 M5 1.880.00~65.00~W ~71EAD3871D313 ~65.00~ZYL ~13 ~4656201 0
  C8 EM8X65E 80 8.0028.0065.0035.035.0~43.08.00M20 M6 1.900.00~65.00~W ~71EAD3871D313 ~30.00~ZYL ~13 ~4656203 0
  C8 EM10X65E 80 10.0035.0065.0035.039.0~46.07.00M20 M8 1.960.00~65.00~W ~71EAD3871D313 ~65.00~ZYL ~13 ~4656205 0
  C8 EM12X70E 80 12.0042.0070.0040.044.0~49.05.00M20 M10 2.100.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4656208 0
  C8 EM14X70E 80 14.0044.0070.0040.044.0~49.05.00M20 M10 2.120.00~70.00~W ~71EAD3871D313 ~70.00~ZYL ~13 ~4656210 0
  C8 EM16X75E 80 16.0048.0075.0045.047.0~52.05.00M20 M12 2.240.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4656212 0
  C8 EM18X75E 80 18.0050.0075.0045.047.0~52.05.00M20 M12 2.260.00~75.00~W ~71EAD3871D313 ~75.00~ZYL ~13 ~4656214 0
  C8 EM20X80E 80 20.0052.0080.0050.049.0~57.08.00M20 M16 2.360.00~80.00~W ~71EAD3871D313 ~80.00~ZYL ~13 ~4656216 0
  C8 EM25X90E 80 25.0065.0090.0060.054.0~60.06.00M20 M20 2.890.00~90.00~W ~71EAD3871D313 ~90.00~ZYL ~13 ~4656218 0
  C8 EM32X95 E 80 32.0072.0095.0065.058.0~64.06.00M20 M20 3.240.00~95.00~W ~71EAD3871D313 ~95.00~ZYL ~13 ~4656220 0
