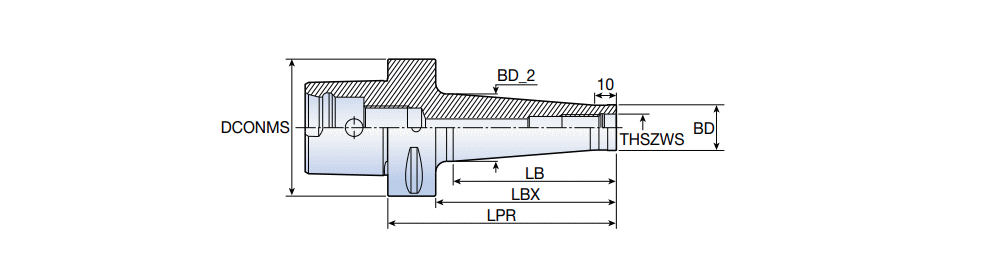

C-ODP : T-FLEXTEC threaded adaptation tools with C-ADAPTER (ISO 26626-1) shanks

Designation	DCONMS	THSZWS	BD	BD_2	LPR	LBX	LB		S1	L2	ClssID	LTA	CCTWS	CCFWS	GICAT
C4 ODP 10X53	40	M10	18.00	23.00	53.00	33.0	23.00	0.33	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656269
C4 ODP 12X53	40	M12	21.00	26.00	53.00	33.0	23.00	0.33	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656270
C4 ODP 16X53	40	M16	29.00	34.00	53.00	33.0	23.00	0.40	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656271
C5 ODP 10X53	50	M10	18.00	19.50	53.00	33.0	25.00	0.49	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656272
C5 ODP 12X103	50	M12	21.00	31.00	103.00	83.0	75.00	0.72	0.00~	103.00~	71EAD3871D313 ~	103.00~	SAI ~	02 ~	4656275
C5 ODP 12X53	50	M12	21.00	23.50	53.00	33.0	25.00	0.50	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656274
C5 ODP 16X103	50	M16	29.00	36.00	103.00	83.0	75.00	0.85	0.00~	103.00~	71EAD3871D313 ~	103.00~	SAI ~	02 ~	4656277
C5 ODP 16X53	50	M16	29.00	29.50	53.00	33.0	25.00	0.57	0.00~	53.00~	71EAD3871D313 ~	53.00~	SAI ~	02 ~	4656276
C6 ODP 10X105	63	M10	18.00	28.00	105.00	83.0	75.00	1.00	0.00~	105.00~	71EAD3871D313 ~	105.00~	SAI ~	02 ~	4655563
C6 ODP 10X130	63	M10	18.00	32.00	130.00	108.0	100.00	1.20	0.00~	130.00~	71EAD3871D313 ~	130.00~	SAI ~	02 ~	4655564
C6 ODP 10X55	63	M10	18.00	19.50	55.00	33.0	25.00	0.82	0.00~	55.00~	71EAD3871D313 ~	55.00~	SAI ~	02 ~	4655562
C6 ODP 12X105	63	M12	21.00	31.00	105.00	83.0	75.00	1.07	0.00~	0.00~	71EAD3871D313 ~	105.00~	SAI ~	02 ~	4655566
C6 ODP 12X130	63	M12	21.00	36.00	130.00	108.0	100.00	1.26	0.00~	0.00~	71EAD3871D313 ~	130.00~	SAI ~	02 ~	4655567
C6 ODP 12X55	63	M12	21.00	23.50	55.00	33.0	25.00	0.84	0.00~	0.00~	71EAD3871D313 ~	55.00~	SAI ~	02 ~	4655565
C6 ODP 16X105	63	M16	29.00	34.00	105.00	83.0	75.00	1.19	0.00~	0.00~	71EAD3871D313 ~	105.00~	SAI ~	02 ~	4655569
C6 ODP 16X130	63	M16	29.00	41.00	130.00	108.0	100.00	1.49	0.00~	0.00~	71EAD3871D313 ~	130.00~	SAI ~	02 ~	4655570
C6 ODP 16X55	63	M16	29.00	34.00	55.00	33.0	25.00	0.89	0.00~	0.00~	71EAD3871D313 ~	55.00~	SAI ~	02 ~	4655568
