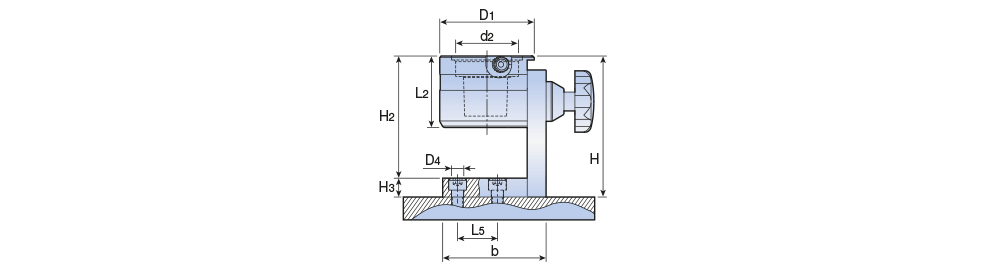

MULTI CLAMP C : Tool clamp rotary fixture for C-ADAPTER shanks

Designation	C. Size	SS	d2	D1	L2	H	H2	H3	b	L5	D4	S1	LTA	GICAT
MULTI CLAMP C5	C5	32	50.00	82.00	72.00	142	123	19	104.0	40.00	12.5	5.00~	0.00~	6117838
MULTI CLAMP C6	C6	63	63.00	95.00	72.00	142	123	19	104.0	40.00	12.5	6.00~	0.00~	4655571
MULTI CLAMP C8	C8	80	80.00	130.00	90.00	178	159	19	104.0	85.00	12.5	8.00~	90.00~	6117839
